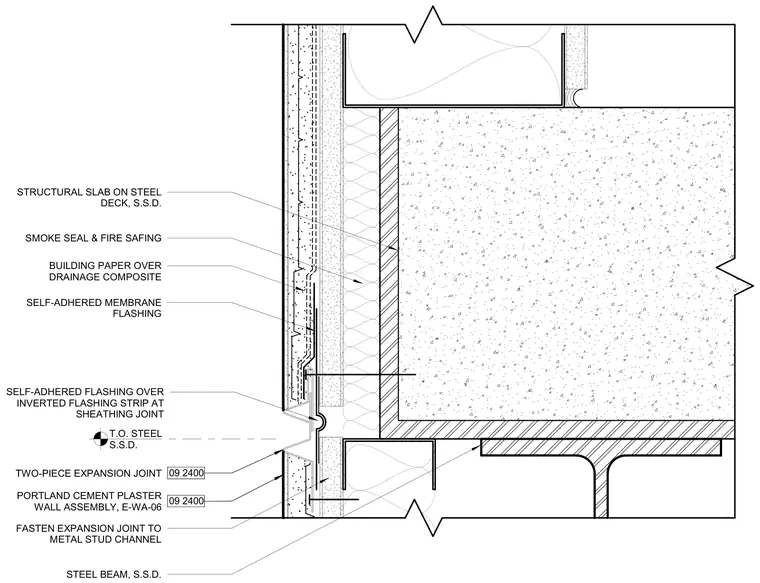

A structural slab on a steel deck bears on a steel beam adjacent to a Portland cement plaster wall assembly. Smoke seal and fire safing fill the perimeter gap between the slab edge and the framing. The exterior wall incorporates a two-piece expansion joint fastened to the metal stud channel. Self-adhered membrane flashing and building paper over drainage composite run down the exterior sheathing. Self-adhered flashing is applied over an inverted flashing strip at the sheathing joint above the expansion joint.
FASTEN EXPANSION JOINT TO METAL STUD CHANNEL 09 2400 TWO-PIECE EXPANSION JOINT SMOKE SEAL & FIRE SAFING 09 2400 PORTLAND CEMENT PLASTER WALL ASSEMBLY, E-WA-06 STRUCTURAL SLAB ON STEEL DECK, S.S.D. STEEL BEAM, S.S.D. T.O. STEEL S.S.D. BUILDING PAPER OVER DRAINAGE COMPOSITE SELF-ADHERED MEMBRANE FLASHING SELF-ADHERED FLASHING OVER INVERTED FLASHING STRIP AT SHEATHING JOINT
