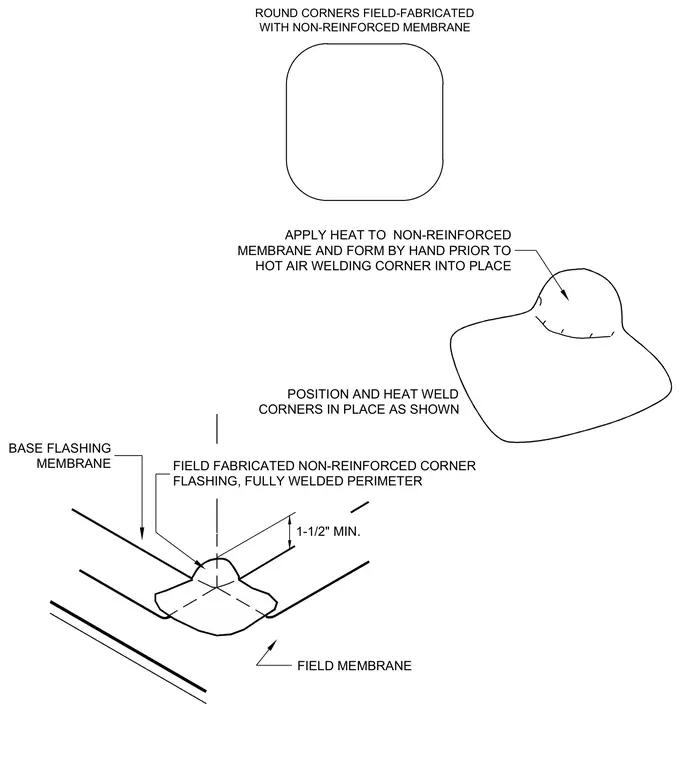

A field-fabricated non-reinforced corner flashing installs over a base flashing membrane in an isometric configuration. The non-reinforced membrane corners are rounded and hand-formed with applied heat prior to hot-air welding. The perimeter of the corner flashing is fully welded with a one-and-a-half-inch minimum overlap onto the field membrane.
FIELD FABRICATED NON-REINFORCED CORNER FLASHING, FULLY WELDED PERIMETER FIELD MEMBRANE POSITION AND HEAT WELD CORNERS IN PLACE AS SHOWN BASE FLASHING MEMBRANE 1-1/2" MIN. APPLY HEAT TO NON-REINFORCED MEMBRANE AND FORM BY HAND PRIOR TO HOT AIR WELDING CORNER INTO PLACE ROUND CORNERS FIELD-FABRICATED WITH NON-REINFORCED MEMBRANE
