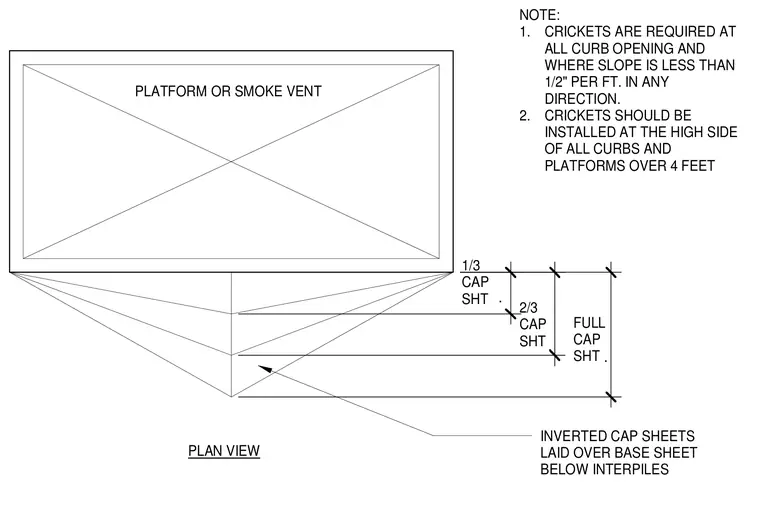

Inverted cap sheets are laid over the base sheet below interpiles on the roof cricket. Crickets are required at all curb openings and where the roof slope is less than 1/2 inch per foot in any direction. These crickets should be installed at the high side of all curbs and platforms over 4 feet wide or at smoke vents. The cap sheet layout includes one-third cap sheet, two-thirds cap sheet, and full cap sheet sections as detailed in the plan view.
INVERTED CAP SHEETS LAID OVER BASE SHEET BELOW INTERPILES NOTE: 1. CRICKETS ARE REQUIRED AT ALL CURB OPENING AND WHERE SLOPE IS LESS THAN 1/2" PER FT. IN ANY DIRECTION. 2. CRICKETS SHOULD BE INSTALLED AT THE HIGH SIDE OF ALL CURBS AND PLATFORMS OVER 4 FEET PLATFORM OR SMOKE VENT 1/3 CAP SHT 2/3 CAP SHT FULL CAP SHT PLAN VIEW . . .
