Galvanized steel vertical support posts are spaced at a maximum of five feet on center and support a 1-1/2 inch diameter pipe guardrail. The posts attach to a galvanized steel structural channel at the top of the platform using a bolted connection. A galvanized steel open grate platform rests adjacent to the structural channel. Code notes indicate the installation complies with IBC requirements for guards in S occupancies.

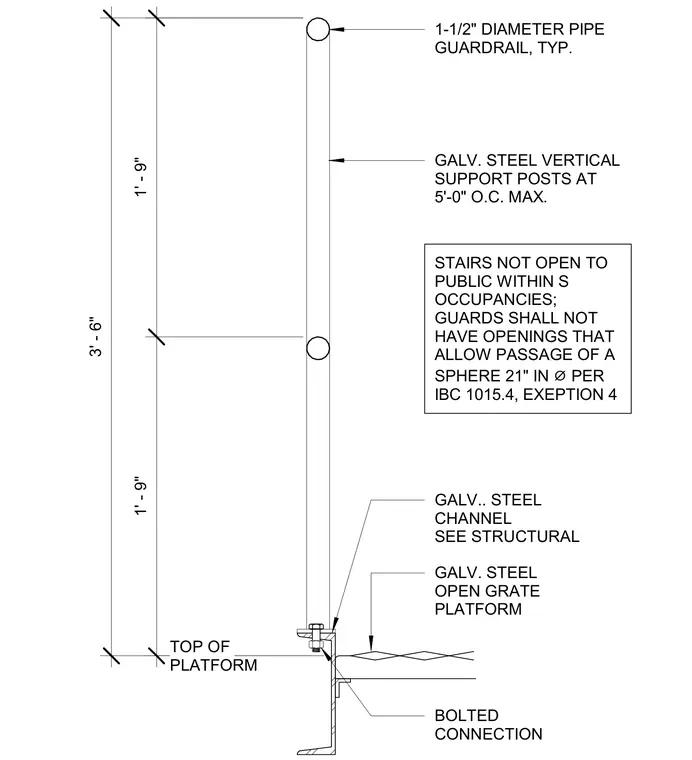

1' - 9" 1' - 9" 3' - 6" 1-1/2" DIAMETER PIPE GUARDRAIL, TYP. TOP OF PLATFORM BOLTED CONNECTION GALV. STEEL VERTICAL SUPPORT POSTS AT 5'-0" O.C. MAX. GALV.. STEEL CHANNEL SEE STRUCTURAL GALV. STEEL OPEN GRATE PLATFORM STAIRS NOT OPEN TO PUBLIC WITHIN S OCCUPANCIES; GUARDS SHALL NOT HAVE OPENINGS THAT ALLOW PASSAGE OF A SPHERE 21" IN ⌀ PER IBC 1015.4, EXEPTION 4
