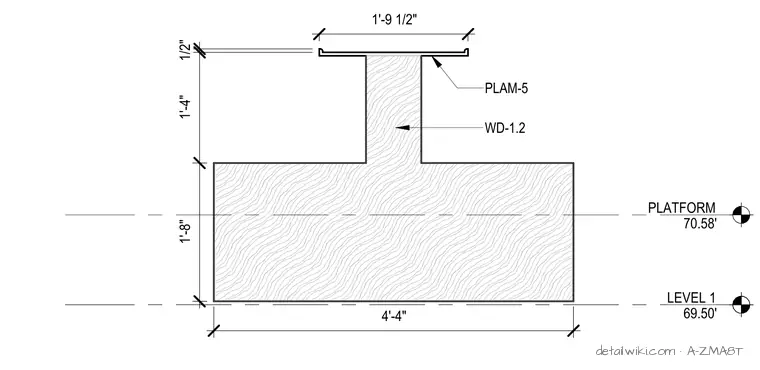

This assembly consists of a wood-framed pedestal, designated WD-1.2, supporting a top surface finished with PLAM-5 plastic laminate. The pedestal base measures 4 feet 4 inches wide by 1 foot 8 inches high, with a vertical support member 1 foot 4 inches high and a top cap 1/2 inch thick. The total width of the top surface is 1 foot 9 1/2 inches. The assembly is positioned relative to a platform elevation of 70.58 feet and Level 1 at 69.50 feet.
