A pipe penetration passes through a one-hour fire-rated wall assembly framed out with a minimum three-and-five-eighths-inch steel stud or a minimum two-by-four wood stud. The opening is trimmed with one-and-a-half-inch by one-and-a-half-inch minimum twenty-two-gauge steel angles secured by one-and-five-eighths-inch steel screws spaced maximum two inches from each end and at maximum five inches on center. The penetrating items accommodated include a maximum six-inch diameter steel pipe, a maximum six-inch diameter cast iron pipe, a maximum three-inch diameter copper pipe, a maximum six-inch diameter steel conduit, and a maximum four-inch diameter electrical metallic tubing.

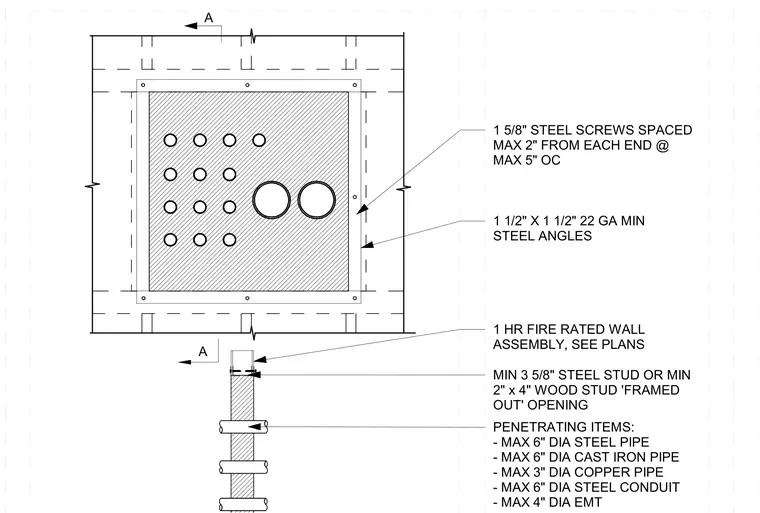

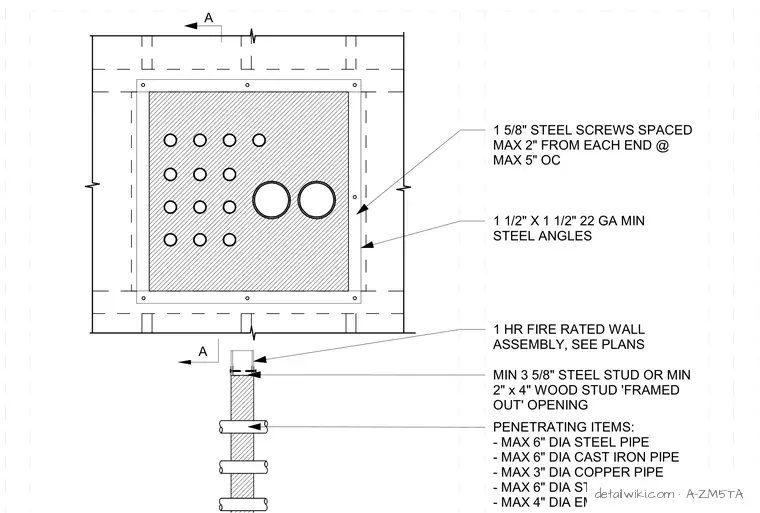

A A 1 5/8" STEEL SCREWS SPACED MAX 2" FROM EACH END @ MAX 5" OC 1 1/2" X 1 1/2" 22 GA MIN STEEL ANGLES 1 HR FIRE RATED WALL ASSEMBLY, SEE PLANS MIN 3 5/8" STEEL STUD OR MIN 2" x 4" WOOD STUD 'FRAMED OUT' OPENING PENETRATING ITEMS: - MAX 6" DIA STEEL PIPE - MAX 6" DIA CAST IRON PIPE - MAX 3" DIA COPPER PIPE - MAX 6" DIA STEEL CONDUIT - MAX 4" DIA EMT
