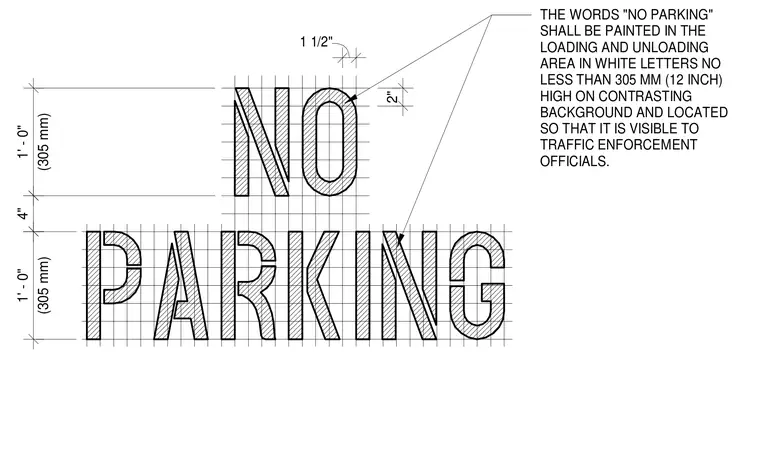

White painted text reads NO PARKING at a minimum height of twelve inches or 305 millimeters on a contrasting background. Letters are positioned within the loading and unloading area to remain visible to traffic enforcement officials. Layout dimensions include a one-foot letter height with four-inch spacing between text rows and stroke widths of one and one-half inches.
2" 1' - 0" (305 mm) 1' - 0" (305 mm) 4" THE WORDS "NO PARKING" SHALL BE PAINTED IN THE LOADING AND UNLOADING AREA IN WHITE LETTERS NO LESS THAN 305 MM (12 INCH) HIGH ON CONTRASTING BACKGROUND AND LOCATED SO THAT IT IS VISIBLE TO TRAFFIC ENFORCEMENT OFFICIALS. 1 1/2"
