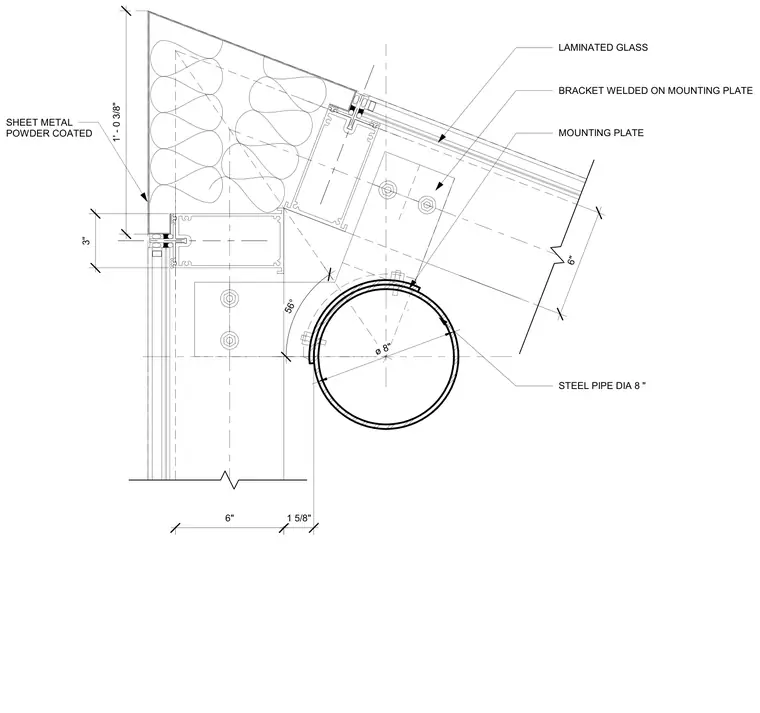

Laminated glass connects to an eight-inch diameter steel pipe using a bracket welded to a mounting plate. Powder-coated sheet metal finishes the exterior junction. The steel pipe is positioned at a fifty-six degree angle with specific dimensional clearances indicated on the framing.
ø 8" 6" 1' - 0 3/8" 56° SHEET METAL POWDER COATED LAMINATED GLASS BRACKET WELDED ON MOUNTING PLATE MOUNTING PLATE STEEL PIPE DIA 8 " 6" 3" 1 5/8"
