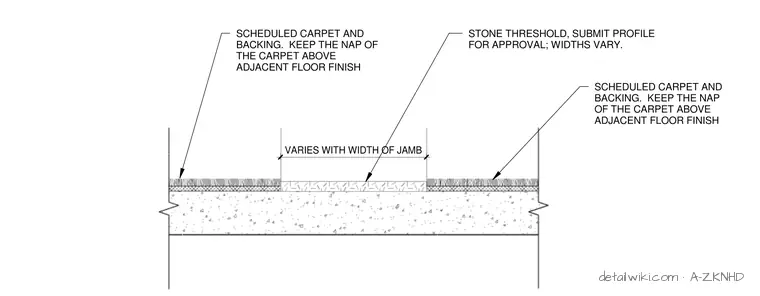

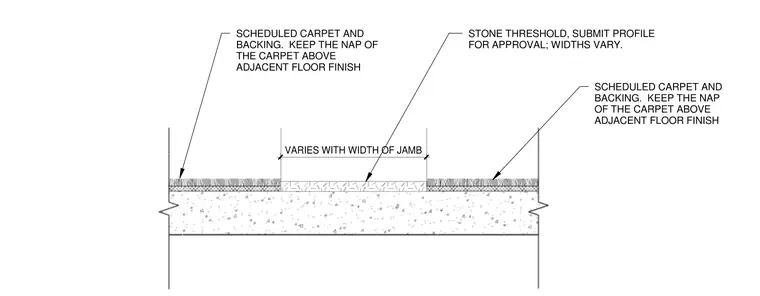

This interior floor transition detail shows scheduled carpet and backing meeting a stone threshold over a concrete slab. The carpet is installed with the nap kept slightly above the adjacent floor finish stone threshold. The stone threshold width varies with the width of the jamb, and the exact profile requires submission for approval. Transition widths vary across the assembly.
VARIES WITH WIDTH OF JAMB SCHEDULED CARPET AND BACKING. KEEP THE NAP OF THE CARPET ABOVE ADJACENT FLOOR FINISH STONE THRESHOLD, SUBMIT PROFILE FOR APPROVAL; WIDTHS VARY. SCHEDULED CARPET AND BACKING. KEEP THE NAP OF THE CARPET ABOVE ADJACENT FLOOR FINISH
