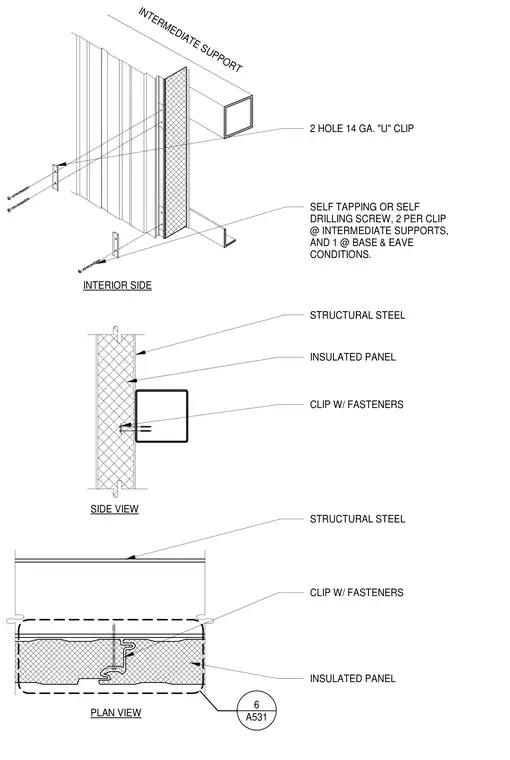

An insulated wall panel is secured to a structural steel girt using a two-hole 14-gauge U-clip fastened with self-tapping or self-drilling screws. Two screws are used per clip at intermediate supports, while one screw is specified at base and eave conditions. The axonometric, side, and plan views illustrate the clip alignment relative to the interior side of the panel and the structural steel support.
2 HOLE 14 GA. "U" CLIP INTERMEDIATE SUPPORT SELF TAPPING OR SELF DRILLING SCREW, 2 PER CLIP @ INTERMEDIATE SUPPORTS, AND 1 @ BASE & EAVE CONDITIONS. INTERIOR SIDE STRUCTURAL STEEL INSULATED PANEL CLIP W/ FASTENERS SIDE VIEW STRUCTURAL STEEL CLIP W/ FASTENERS INSULATED PANEL PLAN VIEW A531 6
