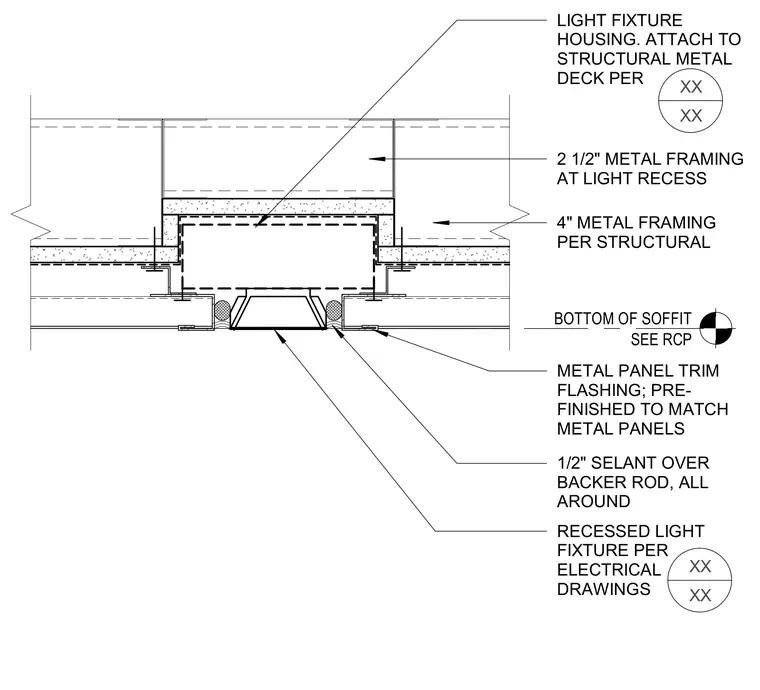

A recessed light fixture housing is attached to the structural metal deck and supported by two-and-a-half-inch and four-inch metal framing at the light recess. Metal panel trim flashing, pre-finished to match the metal panels, finishes the opening around the fixture. A half-inch sealant over backer rod is applied all around the fixture joint.
LIGHT FIXTURE HOUSING. ATTACH TO STRUCTURAL METAL DECK PER 1/2" SELANT OVER BACKER ROD, ALL AROUND 4" METAL FRAMING PER STRUCTURAL METAL PANEL TRIM FLASHING; PRE- FINISHED TO MATCH METAL PANELS RECESSED LIGHT FIXTURE PER ELECTRICAL DRAWINGS SEE RCP BOTTOM OF SOFFIT XX XX XX XX 2 1/2" METAL FRAMING AT LIGHT RECESS
