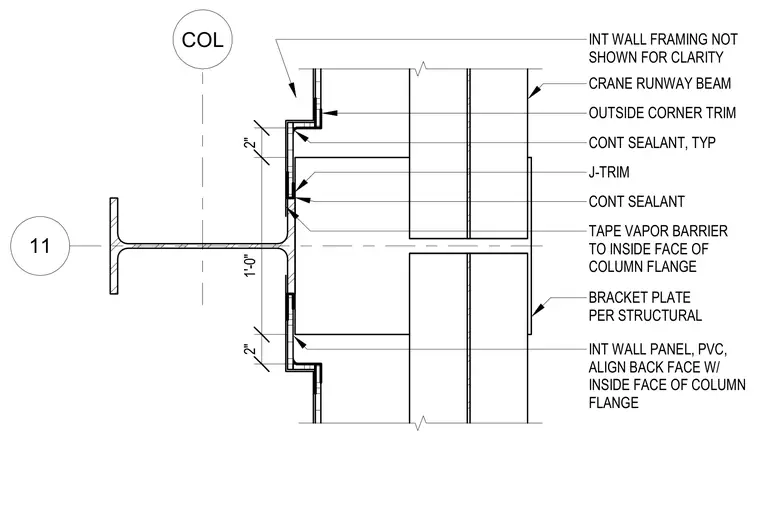

This plan detail shows the connection of a crane runway beam bracket to Column 11 with interior wall panels and flashing. A bracket plate per structural engineering is mounted to the column flange, flanked by PVC interior wall panels aligned with the inside face of the column flange. Continuous sealant is applied at joints, with J-trim and an outside corner trim forming the corner finish. A vapor barrier tape is adhered to the inside face of the column flange.
COL 11 CONT SEALANT, TYP J-TRIM TAPE VAPOR BARRIER TO INSIDE FACE OF COLUMN FLANGE OUTSIDE CORNER TRIM CRANE RUNWAY BEAM INT WALL PANEL, PVC, ALIGN BACK FACE W/ INSIDE FACE OF COLUMN FLANGE CONT SEALANT 2" 1'-0" 2" BRACKET PLATE PER STRUCTURAL INT WALL FRAMING NOT SHOWN FOR CLARITY
