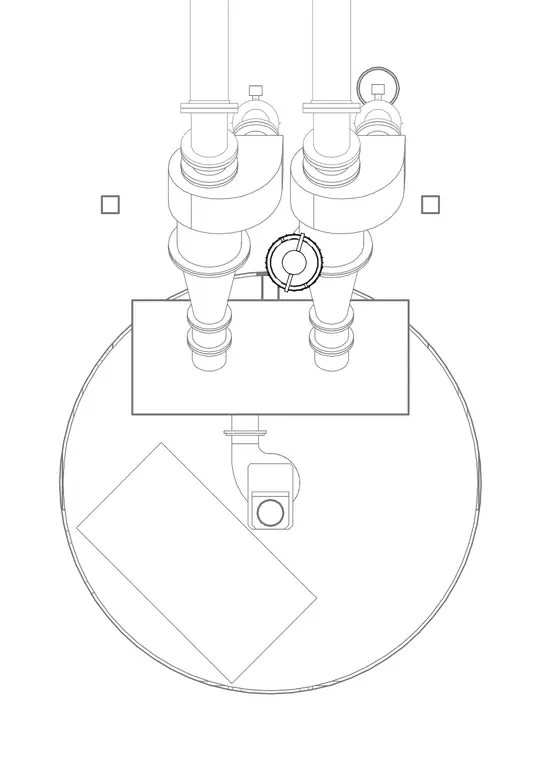

A twin-pump arrangement connects to flanged vertical piping leading into a cylindrical tank with internal equipment. Inlet and discharge lines feature inline components, valves, and flanged connections secured over a rectangular mounting base. The entire assembly sits centered within a circular vessel or pit perimeter.
