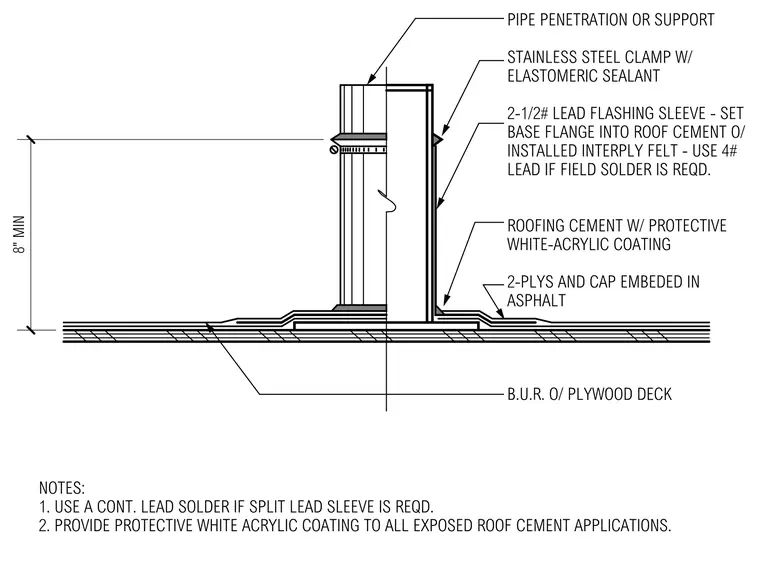

A pipe penetration or support flashing assembly is mounted over a built-up roofing system on a plywood deck. A two and a half pound lead flashing sleeve extends up the pipe penetration, with its base flange set into roofing cement over the installed interply felt. A four pound lead sleeve is used if field soldering is required, and a continuous lead solder is used if a split lead sleeve is required. A stainless steel clamp with elastomeric sealant secures the top of the lead sleeve to the pipe. Roofing cement with a protective white acrylic coating seals the base, applied over two plies and a cap embedded in asphalt.
NOTES: 1. USE A CONT. LEAD SOLDER IF SPLIT LEAD SLEEVE IS REQD. 2. PROVIDE PROTECTIVE WHITE ACRYLIC COATING TO ALL EXPOSED ROOF CEMENT APPLICATIONS. PIPE PENETRATION OR SUPPORT STAINLESS STEEL CLAMP W/ ELASTOMERIC SEALANT 2-1/2# LEAD FLASHING SLEEVE - SET BASE FLANGE INTO ROOF CEMENT O/ INSTALLED INTERPLY FELT - USE 4# LEAD IF FIELD SOLDER IS REQD. ROOFING CEMENT W/ PROTECTIVE WHITE-ACRYLIC COATING 2-PLYS AND CAP EMBEDED IN ASPHALT B.U.R. O/ PLYWOOD DECK 8" MIN
