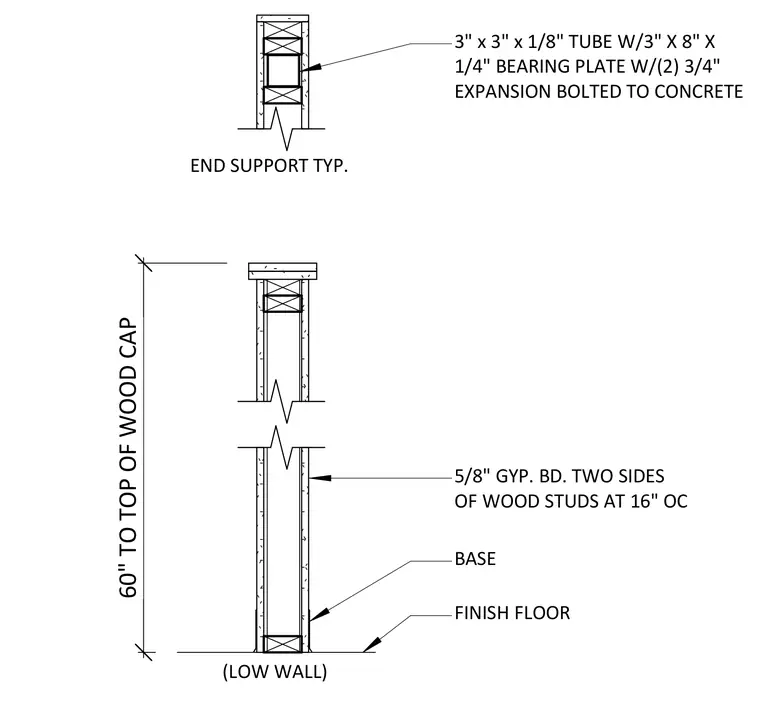

This partition assembly consists of wood studs spaced at sixteen inches on center with five-eighths inch gypsum board applied to both sides. The wall stands at a height of sixty inches to the top of the wood cap. The end support features a three by three by one-eighth inch hollow structural steel tube with a three by eight by one-quarter inch bearing plate. This plate is secured to the concrete base using two three-quarter inch expansion bolts.
(LOW WALL) END SUPPORT TYP. 5/8" GYP. BD. TWO SIDES OF WOOD STUDS AT 16" OC FINISH FLOOR 3" x 3" x 1/8" TUBE W/3" X 8" X 1/4" BEARING PLATE W/(2) 3/4" EXPANSION BOLTED TO CONCRETE BASE 60" TO TOP OF WOOD CAP
