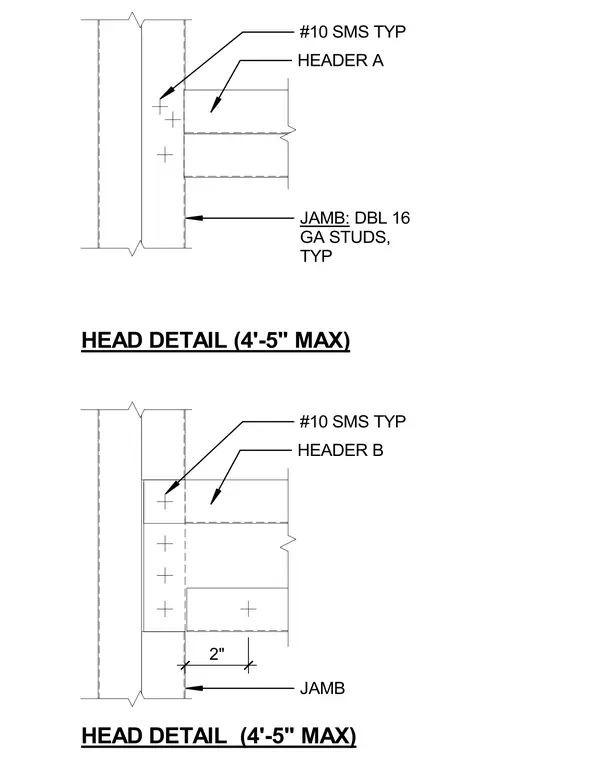

The jamb consists of double 16-gauge cold-formed steel studs framing into header assemblies up to four feet five inches maximum. Header A and Header B connect to the jamb studs using typical number 10 sheet metal screws. A two-inch dimension marks the fastener spacing or offset at the head connection.
HEAD DETAIL (4'-5" MAX) JAMB: DBL 16 GA STUDS, TYP #10 SMS TYP HEADER A HEAD DETAIL (4'-5" MAX) JAMB #10 SMS TYP HEADER B 2"
