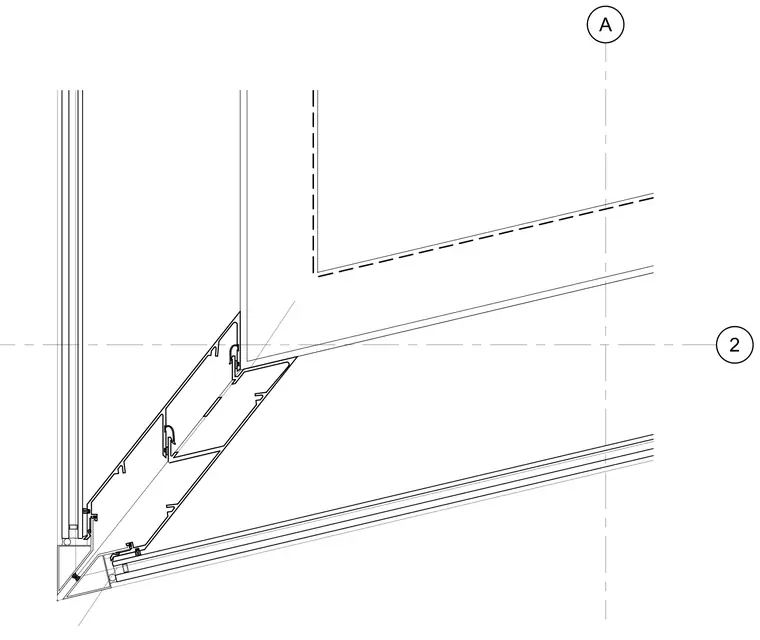

An extruded aluminum curtain wall corner assembly integrates intersecting mullions with internal gaskets and glazing pockets. The framing members connect at a 90-degree corner post containing thermal breaks and structural reinforcement. Glazing stops and retaining gaskets secure the glass panes within the exterior framing profiles.
