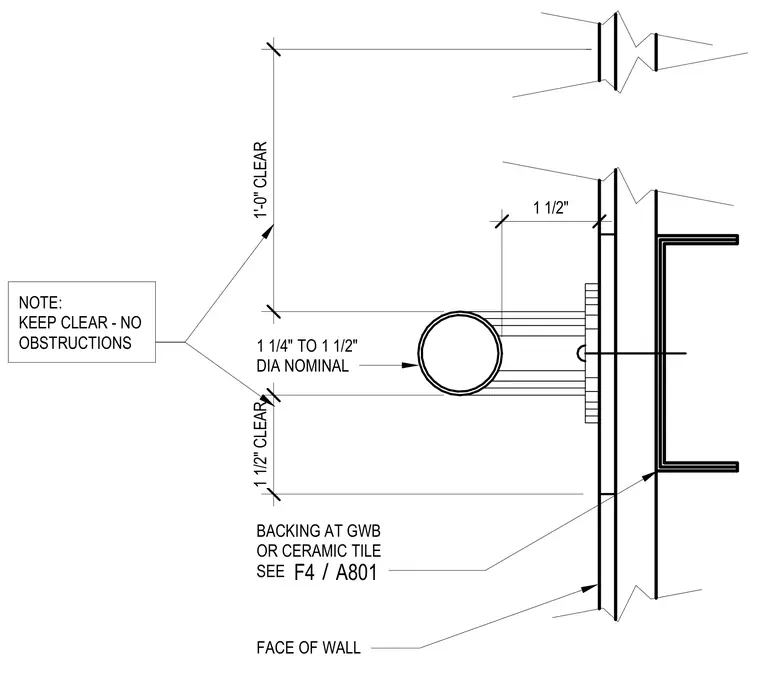

A grab bar featuring a nominal diameter of one and one-quarter to one and one-half inches is installed with a one-and-one-half-inch clear space from the finished face of the wall assembly comprised of gypsum wallboard or ceramic tile. Backing is provided behind the wall surface for secure anchorage. A clear zone of one foot is maintained around the grab bar with no obstructions, supplemented by one-and-one-half-inch clear margins above and below.
1 1/2" CLEAR 1'-0" CLEAR 1 1/2" NOTE: KEEP CLEAR - NO OBSTRUCTIONS 1 1/4" TO 1 1/2" DIA NOMINAL FACE OF WALL BACKING AT GWB OR CERAMIC TILE SEE / F4 A801
