Wall Penetration Flashing and Insulation Detail at Insulated Metal Panel

Materials

Elements

Beams Walls Waterproofing / Flashing Insulation Connections / Plates Roof / Floor Openings

About this detail

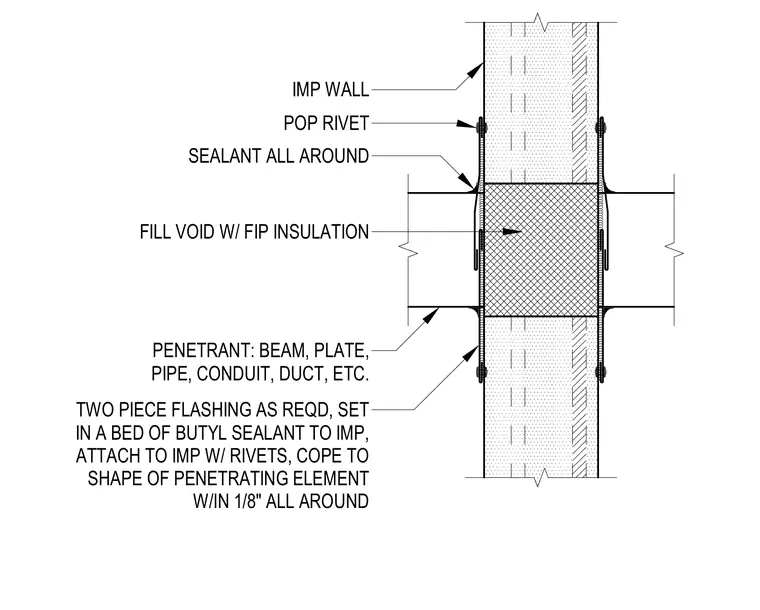

A structural or utility penetration passes through an insulated metal panel wall. A two-piece flashing rests in a bed of butyl sealant against the insulated metal panel, fastens with pop rivets, and copes to within one-eighth inch of the penetrating element all around. The remaining void fills with fire-resistant insulation, and sealant applies continuously around the perimeter. The penetrating element consists of a beam, plate, pipe, conduit, or duct as required by the installation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
