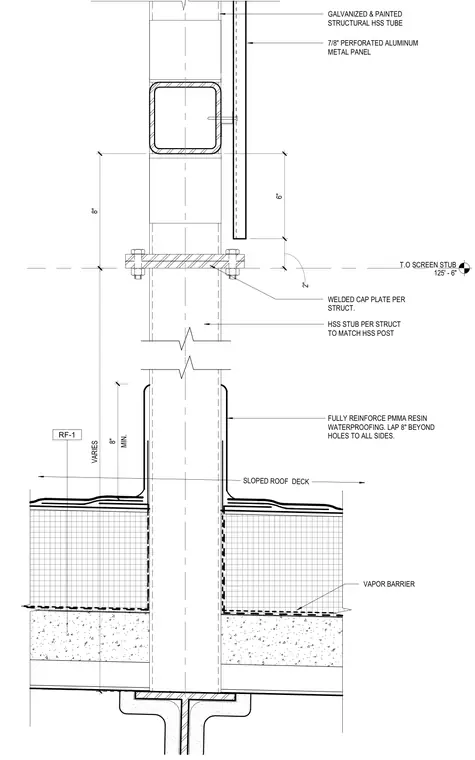

A galvanized and painted structural hollow structural section tube acts as a mechanical screen post, extending past a bolted connection at a welded cap plate to match a structural HSS stub. The HSS stub penetrates the sloped roof deck, which features a vapor barrier, rigid insulation, and a fully reinforced PMM resin waterproofing membrane lapped eight inches beyond penetrations to all sides. The perforated aluminum metal panel fastens to the face of the upper HSS tube with a six-inch clearance gap above the connection plate.
T.O SCREEN STUB 125' - 6" 7/8" PERFORATED ALUMINUM METAL PANEL GALVANIZED & PAINTED STRUCTURAL HSS TUBE FULLY REINFORCE PMMA RESIN WATERPROOFING. LAP 8" BEYOND HOLES TO ALL SIDES. WELDED CAP PLATE PER STRUCT. HSS STUB PER STRUCT TO MATCH HSS POST 2" 6" 8" VARIES SLOPED ROOF DECK MIN. 8" RF-1 VAPOR BARRIER
