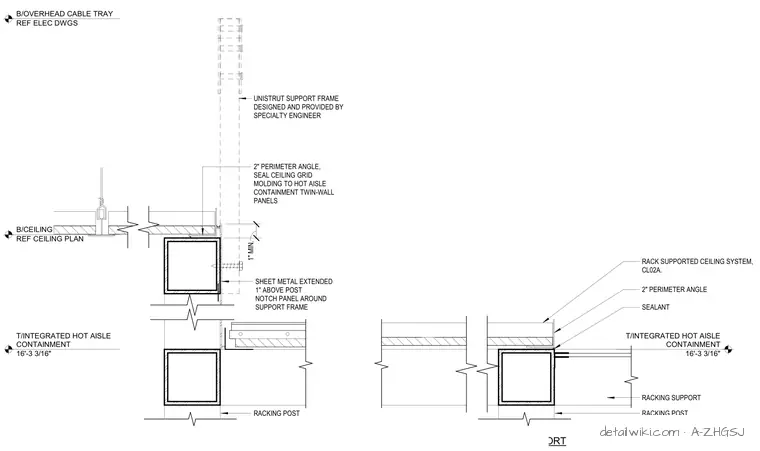

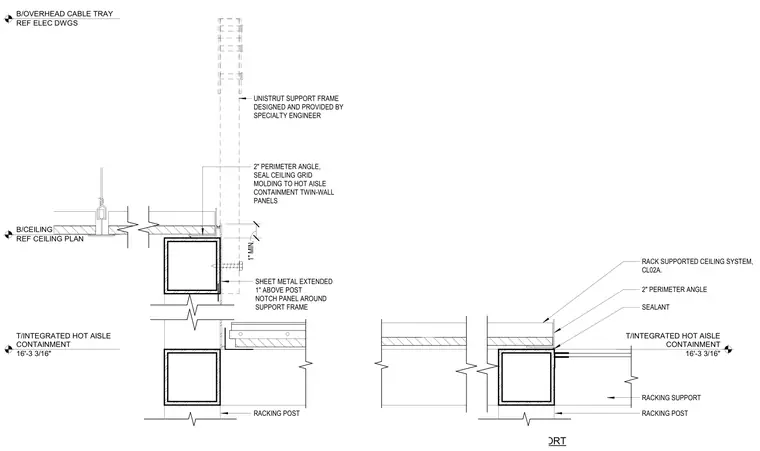

This assembly details the interface between a suspended ceiling grid and a hot aisle containment system supported by racking posts. A two-inch perimeter angle is installed at the ceiling edge, with sealant applied to join the ceiling grid molding to the twin-wall panels of the hot aisle containment. Sheet metal is extended one inch above the racking post, and the containment panel is notched to accommodate the Unistrut support frame, which is designed and provided by a specialty engineer. The top of the integrated hot aisle containment is set at 16 feet 3 and 3/16 inches, aligning with the overhead cable tray elevation.
Text on the drawing
2" PERIMETER ANGLE SEALANT 2" PERIMETER ANGLE, SEAL CEILING GRID MOLDING TO HOT AISLE CONTAINMENT TWIN-WALL PANELS SHEET METAL EXTENDED 1" ABOVE POST NOTCH PANEL AROUND SUPPORT FRAME RACKING POST AT AISLE END AT RACKING SUPPORT UNISTRUT SUPPORT FRAME DESIGNED AND PROVIDED BY SPECIALTY ENGINEER REF CEILING PLAN B/CEILING 16'-3 3/16" T/INTEGRATED HOT AISLE CONTAINMENT REF ELEC DWGS B/OVERHEAD CABLE TRAY 16'-3 3/16" T/INTEGRATED HOT AISLE CONTAINMENT RACK SUPPORTED CEILING SYSTEM, CL02A. RACKING SUPPORT RACKING POST 1" MIN.
