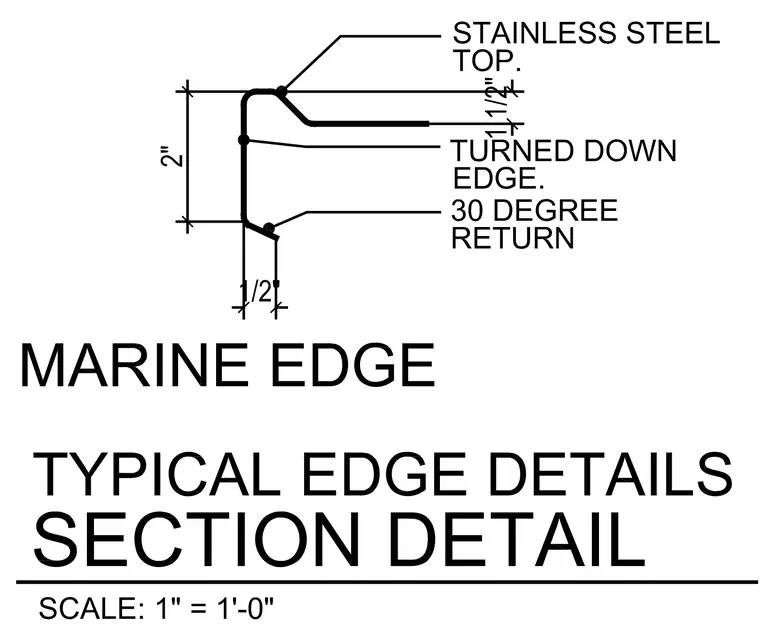

A stainless steel top forms a marine edge profile featuring a turned-down edge with a vertical dimension of two inches and a half-inch return angle. The top surface steps down one and a half inches with a sloped transition, terminating in a horizontal flange. A thirty-degree return is detailed at the bottom of the vertical face with a half-inch horizontal dimension. All dimensions and profile geometries are explicitly called out for fabrication.
