Frameless Backlit Mirror Mounting Detail at Restroom Wall

Materials

Elements

About this detail

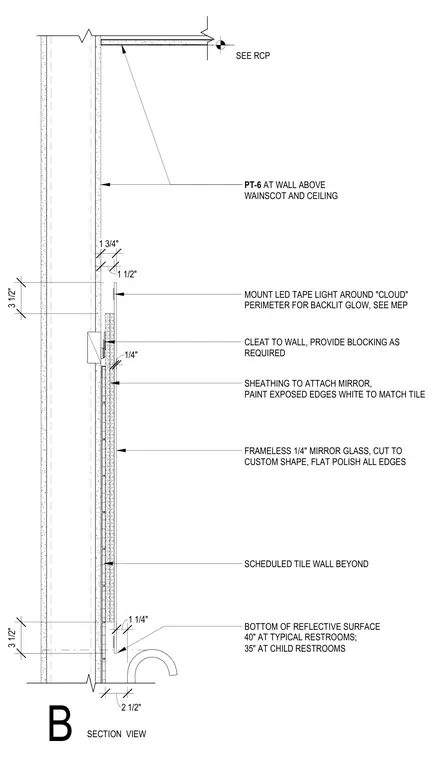

A frameless quarter-inch mirror glass with flat polished edges is mounted to wall sheathing over a scheduled tile wall. A wood cleat secured to wall blocking supports the assembly, with required wood blocking coordinated per the reflected ceiling plan. LED tape lighting is mounted around the cloud perimeter for a backlit glow. Paint exposed edges white to match the tile, and finish the wall above the wainscot and ceiling sheathing with paint finish PT-6. The bottom of the reflective surface is positioned at forty inches above the floor for typical restrooms and thirty-five inches for child restrooms.
