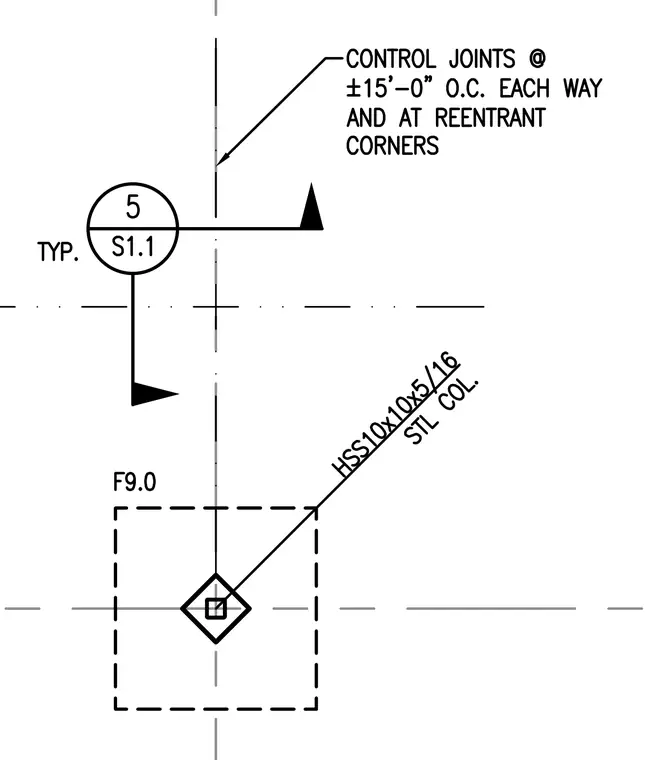

Control joints are located at approximately fifteen feet on center each way and at reentrant corners. A hollow structural section steel column designated as HSS10x10x5/16 STL COL is centered on grid intersections with a reference tag F9.0 and a typical section cut referencing detail 5 on sheet S1.1.
