A surface-mounted two-and-a-half-inch interior roller shade and pocket assembly is anchored adjacent to an exterior wall and coordinated with an acoustic ceiling system. A removable closure provided by the manufacturer conceals the pocket opening. The roller shade joint aligns with the center of the vertical mullion when the single span exceeds the manufacturer maximum dimension.

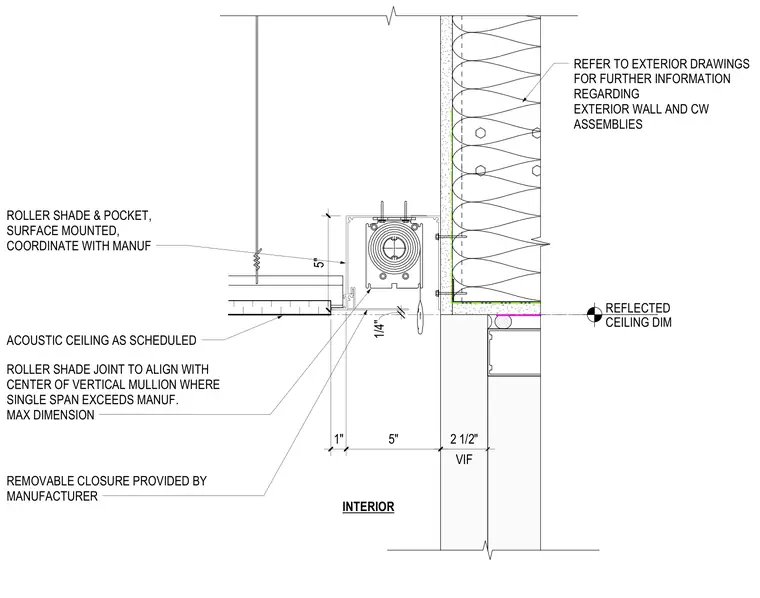

VIF 2 1/2" INTERIOR ROLLER SHADE & POCKET, SURFACE MOUNTED, COORDINATE WITH MANUF ROLLER SHADE JOINT TO ALIGN WITH CENTER OF VERTICAL MULLION WHERE SINGLE SPAN EXCEEDS MANUF. MAX DIMENSION REMOVABLE CLOSURE PROVIDED BY MANUFACTURER ACOUSTIC CEILING AS SCHEDULED REFER TO EXTERIOR DRAWINGS FOR FURTHER INFORMATION REGARDING EXTERIOR WALL AND CW ASSEMBLIES REFLECTED CEILING DIM 1/4" 1" 5" 5"
