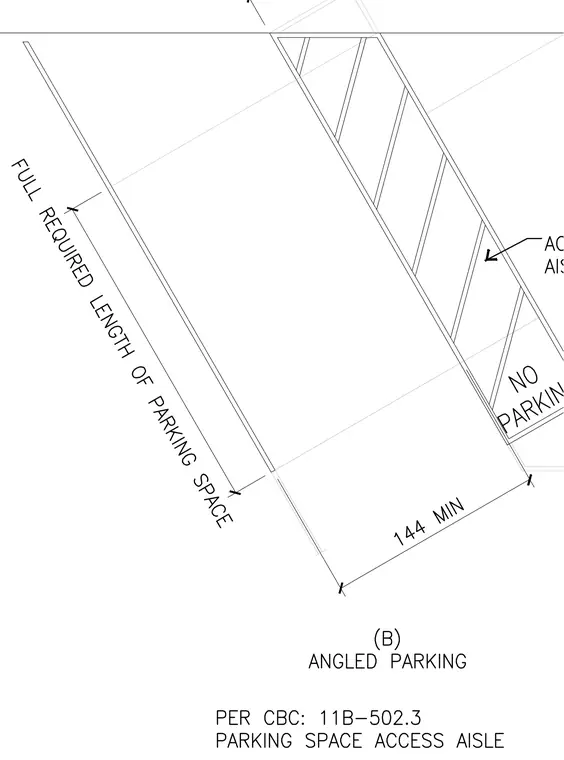

An angled accessible parking stall layout shows the required dimensions and access aisle configuration per CBC 11B-502.3. The drawing indicates a full required length of the parking space adjacent to a hatched access aisle with 'NO PARKING' lettering marked on the pavement. A minimum width of 144 inches is specified for the access aisle.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
