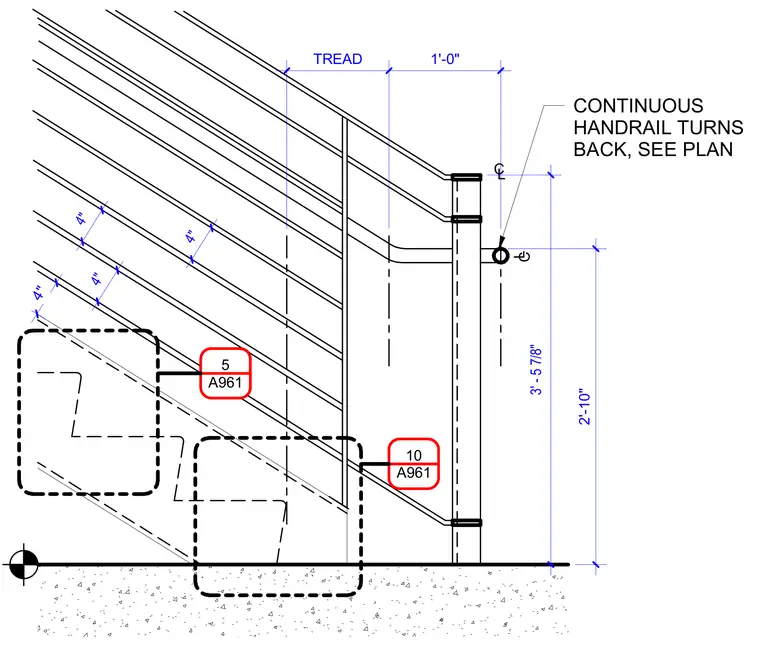

The stair guardrail assembly features a continuous handrail turning back towards the support sized per plan with a centerline height of 3 feet 5 7/8 inches above the landing finish floor. Intermediate guard rails are spaced vertically at 4 inches on center. The post sits near the bottom landing level above a concrete floor slab.
A961 5 4" A961 10 CL 2'-10" 1'-0" TREAD CONTINUOUS HANDRAIL TURNS BACK, SEE PLAN CL 3' - 5 7/8" 4" 4" 4"
