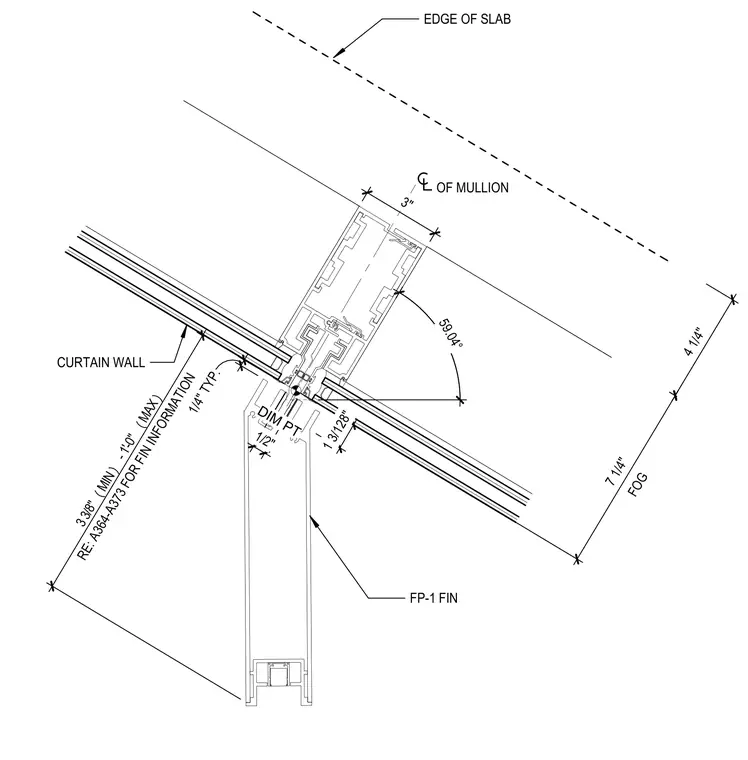

This plan detail shows the geometric layout of a curtain wall mullion relative to the edge of slab. An FP-1 fin projects from the mullion profile at a 59.04-degree angle. Dimensions locate the centerline of the mullion, dimension point, and face of glass, with a typical one-quarter-inch joint spacing. Additional dimensions specify a range from three and three-eighths inches minimum to one foot zero inches maximum, referencing sheets A364 through A373 for fin information.
F O G 7 1 / 4 " 1 / 2 " OF MULLION 4 1 / 4 " DIM PT CURTAIN WALL 5 9 . 0 4 ° EDGE OF SLAB FP-1 FIN 3 " 1 / 4 " T Y P . 1 3 / 1 2 8 " R E : A 3 6 4 - A 3 7 3 F O R F I N I N F O R M A T I O N 3 3 / 8 " ( M I N ) - 1 ' - 0 " ( M A X )
