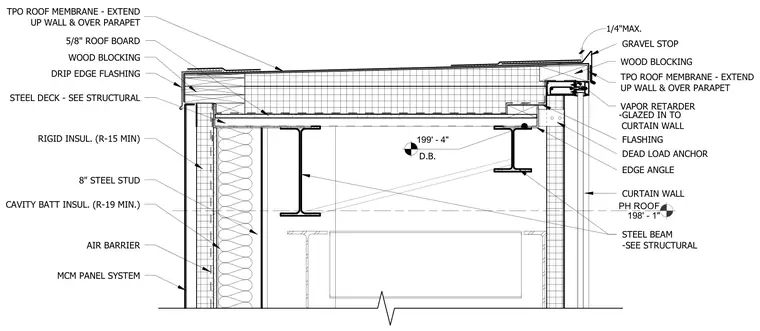

The roof assembly consists of a TPO roof membrane extending up the wall and over the parapet, laid over five-eighths inch roof board and wood blocking. A gravel stop and drip edge flashing terminate the edge above the curtain wall, which integrates with a dead load anchor and edge angle. The exterior wall is framed with eight-inch steel studs backed by an air barrier, vapor retarder, minimum R-fifteen rigid insulation, minimum R-nineteen cavity batt insulation, and an MCM panel system. Structural support is provided by steel beams and a steel deck sized per structural drawings.
PH ROOF 198' - 1" CURTAIN WALL GRAVEL STOP DRIP EDGE FLASHING MCM PANEL SYSTEM RIGID INSUL. (R-15 MIN) 8" STEEL STUD VAPOR RETARDER AIR BARRIER 1/4"MAX. 199' - 4" WOOD BLOCKING D.B. CAVITY BATT INSUL. (R-19 MIN.) WOOD BLOCKING DEAD LOAD ANCHOR STEEL DECK - SEE STRUCTURAL EDGE ANGLE FLASHING STEEL BEAM -SEE STRUCTURAL -GLAZED IN TO CURTAIN WALL 5/8" ROOF BOARD TPO ROOF MEMBRANE - EXTEND UP WALL & OVER PARAPET TPO ROOF MEMBRANE - EXTEND UP WALL & OVER PARAPET
