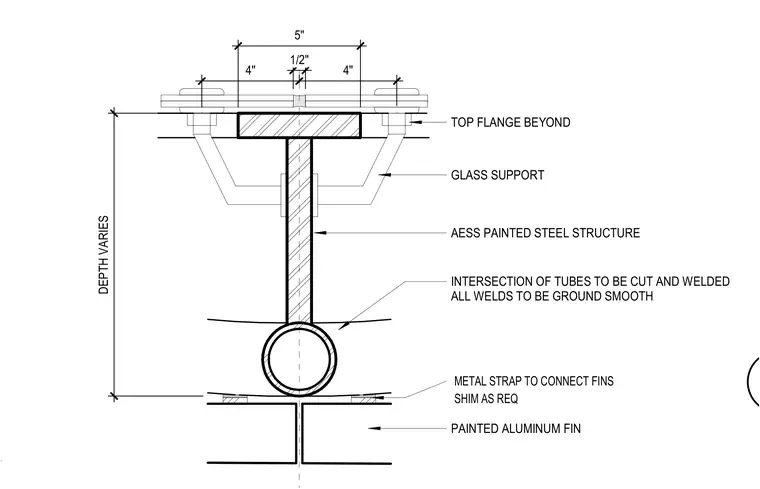

An architectural canopy edge detail showing the center beam connection featuring an architecturally exposed structural steel painted structure with a varying depth. The intersection of tubes is cut and welded with all welds ground smooth, and a top flange extends beyond. Glass supports connect to four-inch painted aluminum fins, tied together with metal straps and shims as required over a butt joint.
5 " 1 / 2 " D E P T H V A R I E S INTERSECTION OF TUBES TO BE CUT AND WELDED ALL WELDS TO BE GROUND SMOOTH TOP FLANGE BEYOND AESS PAINTED STEEL STRUCTURE GLASS SUPPORT 4 " 4 " PAINTED ALUMINUM FIN M E T A L S T R A P T O C O N N E C T F I N S S H I M A S R E Q ALL WELDS TO BE GROUND SMOOTH. BUTT JOINT
