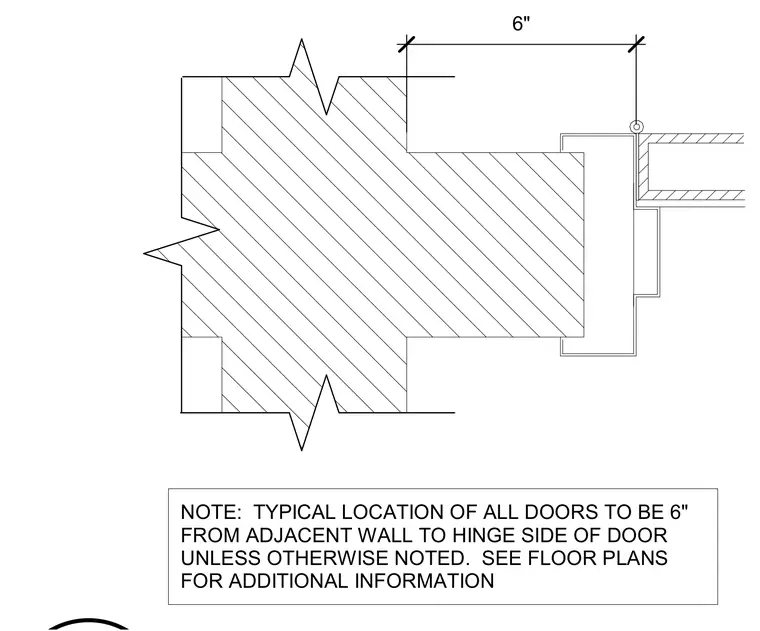

Typical plan detail showing the six-inch clearance requirement from an adjacent wall to the hinge side of a door frame. The assembly establishes a standard dimensioned offset between the wall partition and the door opening unless otherwise noted.
6" NOTE: TYPICAL LOCATION OF ALL DOORS TO BE 6" FROM ADJACENT WALL TO HINGE SIDE OF DOOR UNLESS OTHERWISE NOTED. SEE FLOOR PLANS FOR ADDITIONAL INFORMATION
