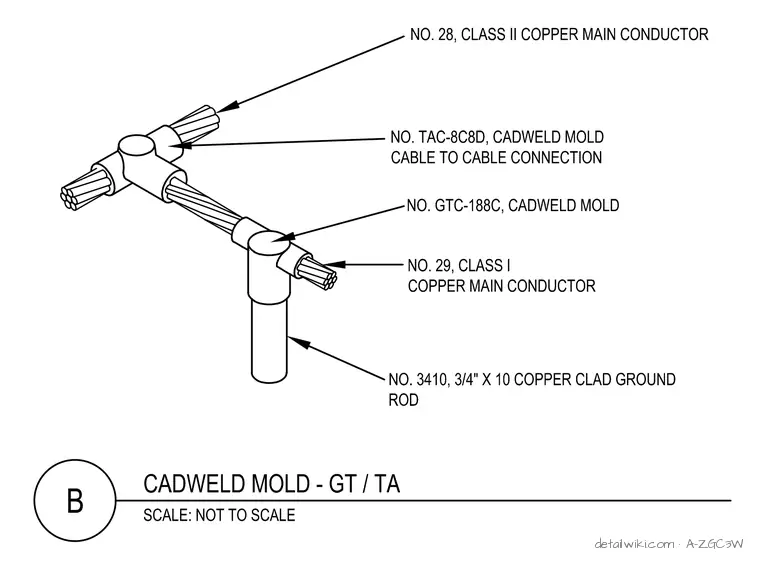

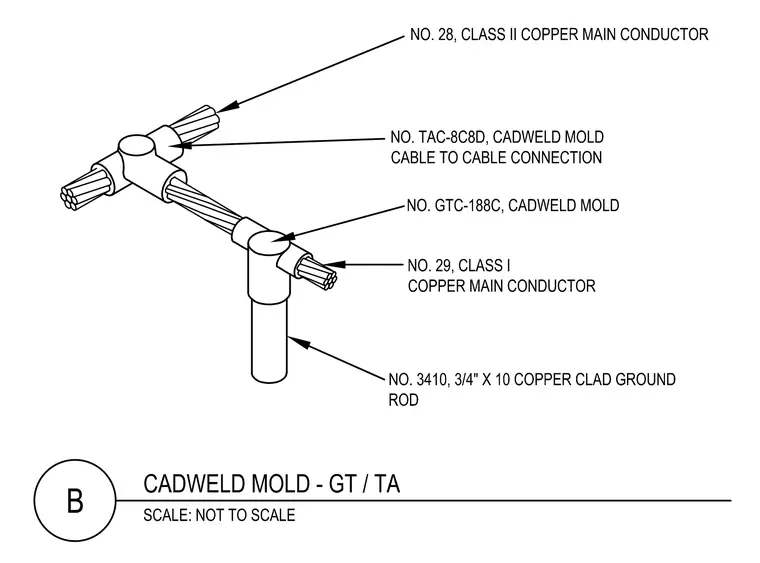

This isometric detail shows an exothermic welded grounding connection utilizing a number TAC-8C8D Cadweld mold for a cable-to-cable connection and a number GTC-188C Cadweld mold connecting a copper main conductor to a vertical ground rod. The assembly includes a number 28 Class II copper main conductor and a number 29 Class I copper main conductor. A number 3410 three-quarter-inch by 10-foot copper-clad ground rod receives the vertical termination.
