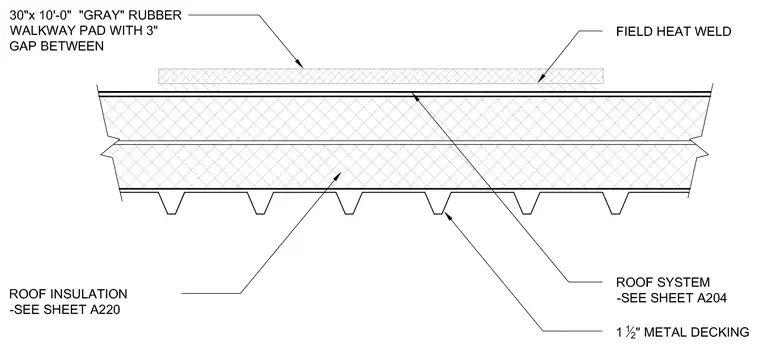

A thirty-inch by ten-foot gray rubber walkway pad is installed over the roof system with a three-inch gap between sections, featuring a field heat weld. The roof assembly bears on one and one-half inch metal decking, with roof insulation and overall roof system specifications coordinated per sheet numbers A220 and A204.
