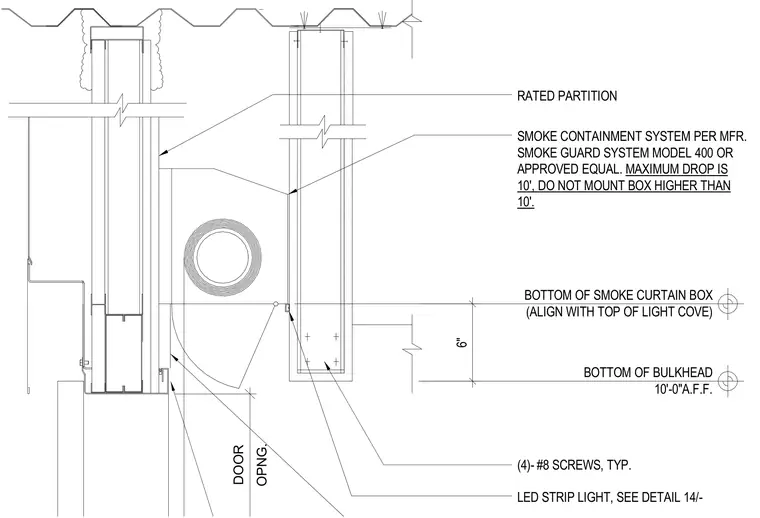

The smoke containment system mounts adjacent to a rated partition with the bottom of the smoke curtain box aligned to the top of the light cove at ten feet above finished floor. The smoke guard system model 400 requires a maximum drop of ten feet and mounts with four number eight screws typically. A six inch door opening sits below the bulkhead with an adjacent LED strip light detailed on another sheet.
6" DOOR OPNG. BOTTOM OF BULKHEAD 10'-0"A.F.F. BOTTOM OF SMOKE CURTAIN BOX (ALIGN WITH TOP OF LIGHT COVE) SMOKE CONTAINMENT SYSTEM PER MFR. SMOKE GUARD SYSTEM MODEL 400 OR APPROVED EQUAL. MAXIMUM DROP IS 10', DO NOT MOUNT BOX HIGHER THAN 10'. (4)- #8 SCREWS, TYP. LED STRIP LIGHT, SEE DETAIL 14/- RATED PARTITION
