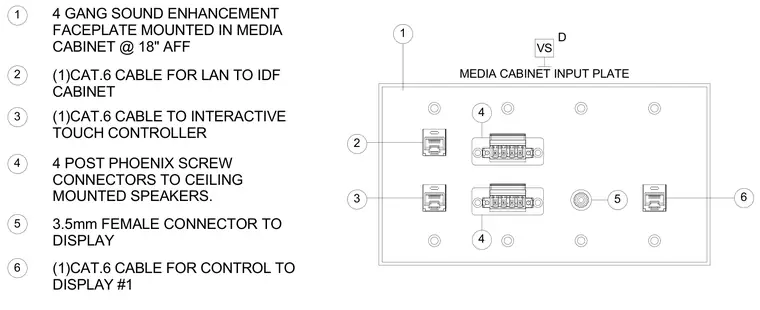

A four-gang sound enhancement faceplate is mounted in the media cabinet at eighteen inches above the finished floor. The plate incorporates two Category 6 cables for local area network connection to the intermediate distribution frame cabinet and interactive touch controller, alongside a third Category 6 cable for display control. Audio connections include four-post Phoenix screw connectors linking to ceiling-mounted speakers and a three-point-five millimeter female connector running to the display.
1 2 3 5 4 6 1 2 3 4 4 5 6 4 GANG SOUND ENHANCEMENT FACEPLATE MOUNTED IN MEDIA CABINET @ 18" AFF (1)CAT.6 CABLE FOR LAN TO IDF CABINET (1)CAT.6 CABLE TO INTERACTIVE TOUCH CONTROLLER 3.5mm FEMALE CONNECTOR TO DISPLAY 4 POST PHOENIX SCREW CONNECTORS TO CEILING MOUNTED SPEAKERS. (1)CAT.6 CABLE FOR CONTROL TO DISPLAY #1 MEDIA CABINET INPUT PLATE VS D
