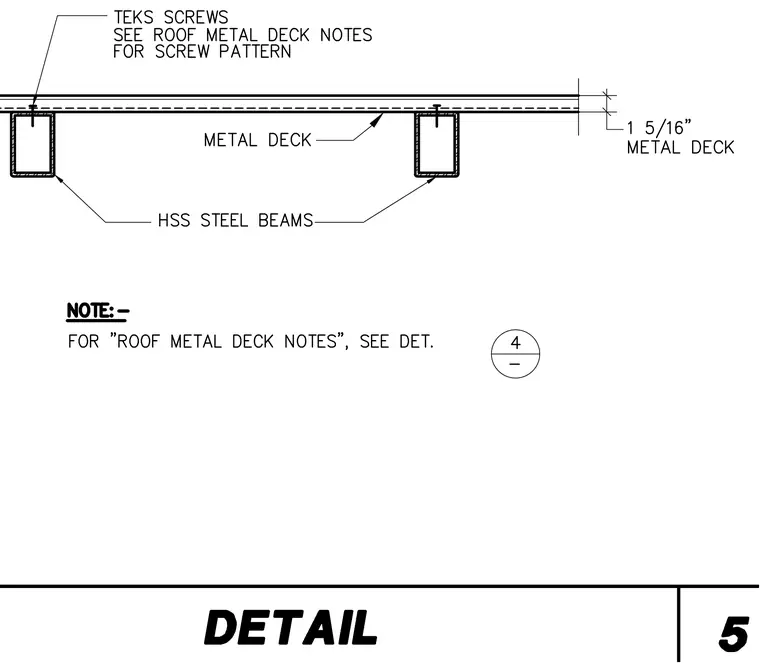

Metal roof deck bears directly on hollow structural section steel beams and is secured with Tek screws following the designated screw pattern. The metal deck profile measures one and five-sixteenths inches in depth. A reference note directs the builder to detail 4 for complete roof metal deck notes.
