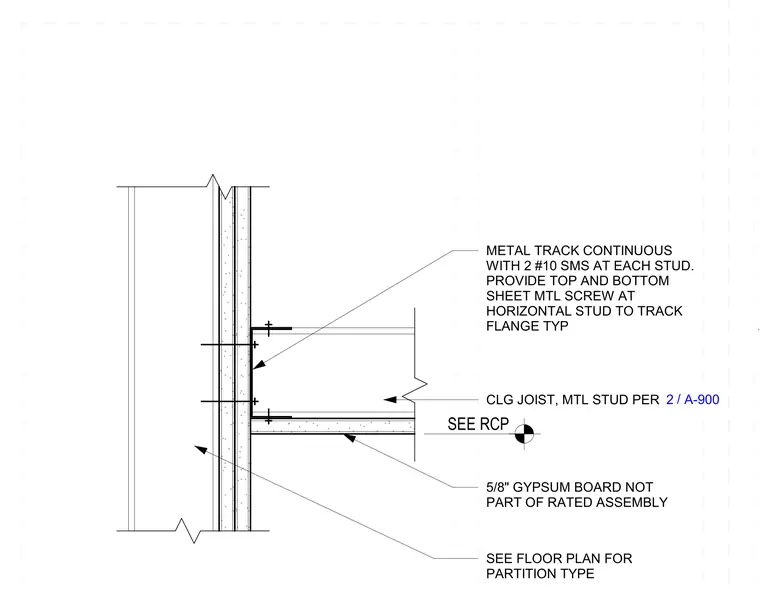

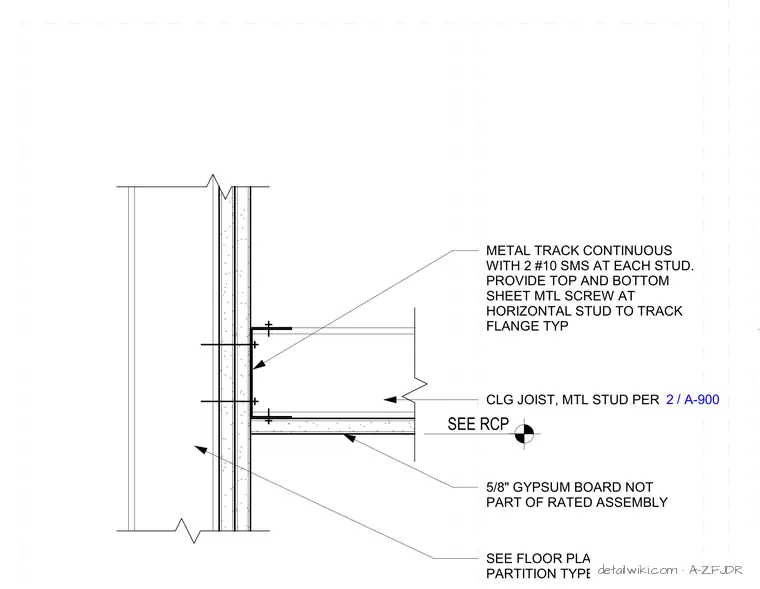

A-ZFJDR — Gb Joist To Wall Rated /

Architectural · A-ZFJDR

Gb Joist To Wall Rated /

Scale: 3" = 1'-0"
Units: imperial
Sheet: A-900
Discipline: Architectural

Materials

Cold-formed Steel Gypsum / Drywall Metal (misc.)Timber / Wood

Elements

Beams Ceilings Floors / Slabs Partitions Walls

Text on the drawing

SEE RCP SEE FLOOR PLAN FOR PARTITION TYPE 5/8" GYPSUM BOARD NOT PART OF RATED ASSEMBLY CLG JOIST, MTL STUD PER / 2 A-900 METAL TRACK CONTINUOUS WITH 2 #10 SMS AT EACH STUD. PROVIDE TOP AND BOTTOM SHEET MTL SCREW AT HORIZONTAL STUD TO TRACK FLANGE TYP

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
