Foundation Wall Waterproofing and Shoring System Details

Materials

Concrete Steel Timber / Wood Masonry / CMU

Elements

Walls Retaining Walls Foundations / Footings Expansion / Control Joints Waterproofing / Flashing

About this detail

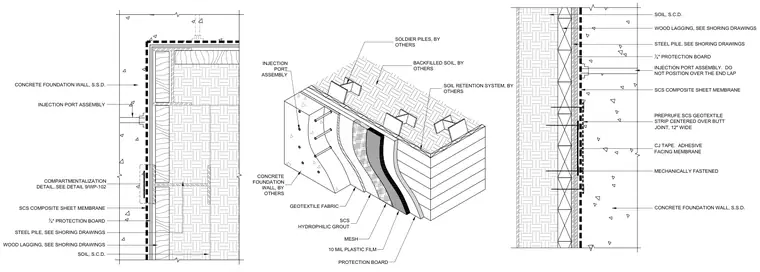

This assembly details a waterproofed concrete foundation wall cast against a soil retention system of steel piles and wood lagging. The waterproofing layers include an SCS composite sheet membrane, a 1/4-inch protection board, and an adhesive-faced CJ tape with a 12-inch wide Preprufe SCS geotextile strip centered over butt joints. An injection port assembly and hydrophilic grout are integrated for compartmentalized water mitigation, positioned to avoid end laps. Additional layers consist of geotextile fabric, mesh, a 10-mil plastic film, and backfilled soil.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
