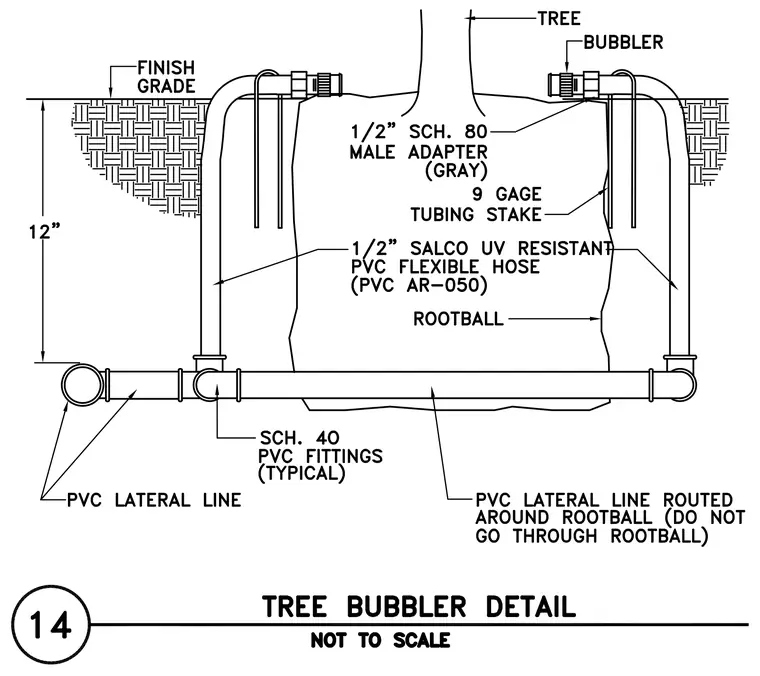

A PVC lateral line routes around the tree rootball with schedule 40 PVC fittings. One-half inch Salco UV-resistant PVC flexible hose connects to the lateral and rises to a one-half inch schedule 80 gray male adapter at the bubbler. Nine-gauge tubing stakes secure the vertical hose runs in place twelve inches below the finish grade.
