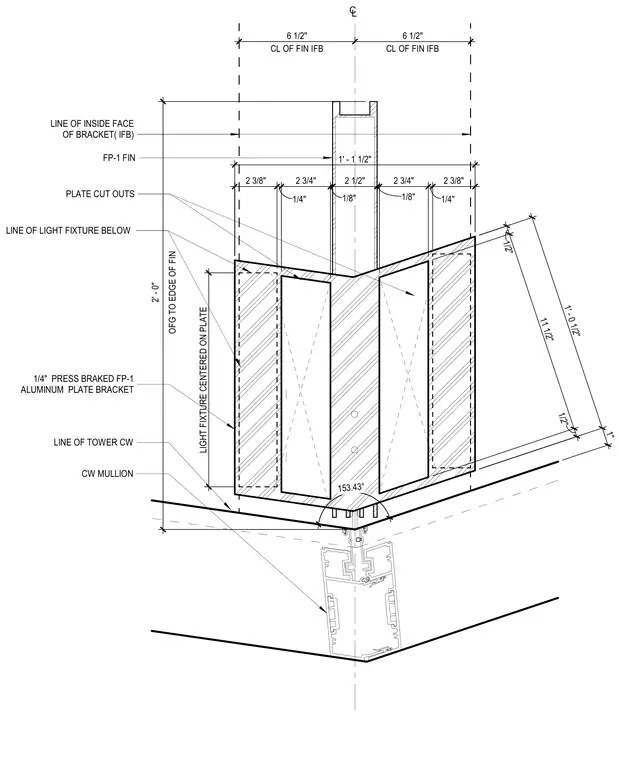

A crown light valance assembly is positioned at a curtain wall mullion with a 153.43-degree angle. The assembly consists of a quarter-inch thick press-braked FP-1 aluminum plate bracket aligned with the inside face of the bracket and the FP-1 fin. Plate cut outs accommodate a light fixture centered on the plate, with specific dimensional offsets measuring two feet to the edge of the fin. The layout is referenced to the tower curtain wall line and the curtain wall mullion.
O F G T O E D G E O F F I N 2 ' - 0 " 1 ' - 0 1 / 2 " 1 " 1 / 2 " 1 1 1 / 2 " 1 / 2 " 2 3 / 8 " 1 / 4 " 2 3 / 4 " 1 / 8 " 2 1 / 2 " 1 / 8 " 2 3 / 4 " 1 / 4 " 2 3 / 8 " 1 ' - 1 1 / 2 " LINE OF TOWER CW 1/4" PRESS BRAKED FP-1 ALUMINUM PLATE BRACKET LINE OF LIGHT FIXTURE BELOW FP-1 FIN PLATE CUT OUTS LINE OF INSIDE FACE OF BRACKET( IFB) C L O F F I N I F B 6 1 / 2 " C L O F F I N I F B 6 1 / 2 " CL CW MULLION 1 5 3 . 4 3 ° L I G H T F I X T U R E C E N T E R E D O N P L A T E
