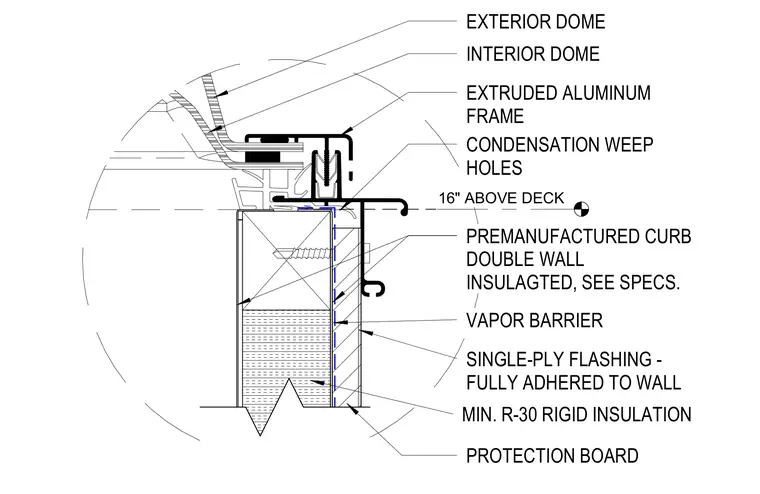

An extruded aluminum frame sits atop a premanufactured double-wall insulated curb extending a minimum of sixteen inches above the roof deck. The exterior and interior domes secure into the aluminum frame, which includes condensation weep holes. A vapor barrier and minimum R-30 rigid insulation wrap the curb, covered by a protection board and fully adhered single-ply flashing.
EXTERIOR DOME INTERIOR DOME EXTRUDED ALUMINUM FRAME CONDENSATION WEEP HOLES 16" ABOVE DECK MIN. R-30 RIGID INSULATION PROTECTION BOARD SINGLE-PLY FLASHING - FULLY ADHERED TO WALL PREMANUFACTURED CURB DOUBLE WALL INSULAGTED, SEE SPECS. VAPOR BARRIER
