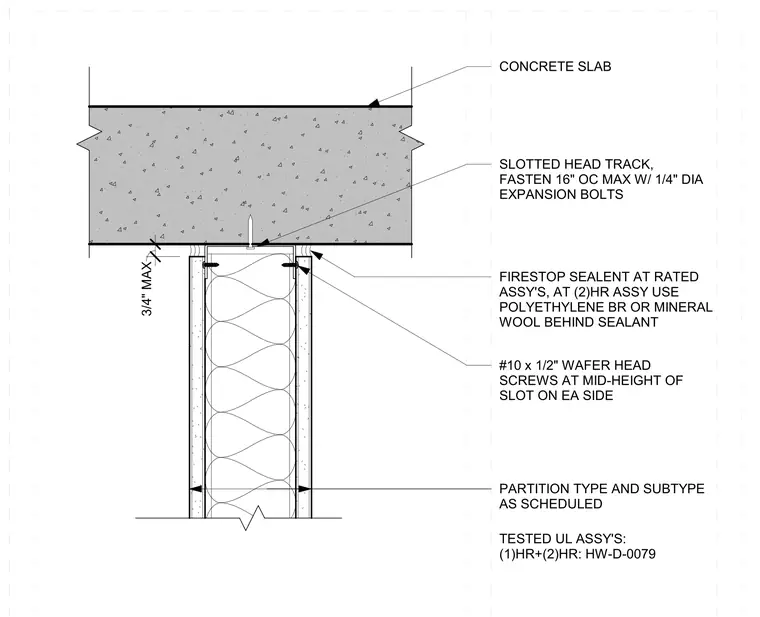

A cold-formed steel partition wall head connects to an overhead concrete slab. A slotted head track is secured to the concrete slab using one-quarter-inch diameter expansion bolts spaced at sixteen inches on center maximum. Number ten by one-half-inch wafer head screws are installed at the mid-height of the slot on each side, allowing for vertical deflection with a three-quarter-inch maximum movement joint. Firestop sealant is applied at rated assemblies, utilizing polyethylene backer rod or mineral wool behind the sealant for two-hour rated assemblies per UL system HW-D-0079. Gypsum board partitions are finished per schedule.
SLOTTED HEAD TRACK, FASTEN 16" OC MAX W/ 1/4" DIA EXPANSION BOLTS CONCRETE SLAB PARTITION TYPE AND SUBTYPE AS SCHEDULED TESTED UL ASSY'S: (1)HR+(2)HR: HW-D-0079 FIRESTOP SEALENT AT RATED ASSY'S, AT (2)HR ASSY USE POLYETHYLENE BR OR MINERAL WOOL BEHIND SEALANT #10 x 1/2" WAFER HEAD SCREWS AT MID-HEIGHT OF SLOT ON EA SIDE 3/4" MAX
