Foundation Curb and Curtain Wall Corner Plan Detail

Materials

Elements

Columns Walls Doors Curtain Walls Floors / Slabs Foundations / Footings Waterproofing / Flashing Millwork / Casework Site / Paving

About this detail

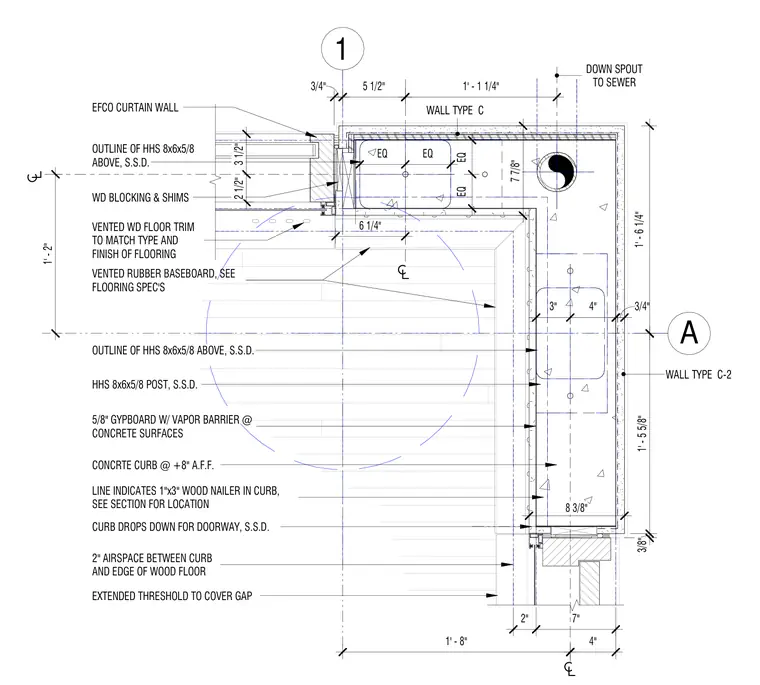

A concrete curb at eight inches above finished floor features an embedded one-by-three-inch wood nailer at a northwest corner intersection. An HSS 8x6x5/8 structural steel post and its outline above tie into the assembly alongside wood blocking and shims. The exterior edge interfaces with an EFCO curtain wall system, while the interior includes a two-inch airspace between the curb and the wood floor edge, bridged by an extended threshold. Gypsum board with a vapor barrier lines the concrete surfaces, finished with vented wood floor trim and vented rubber baseboards. A downspout routed to the sewer integrates into the corner layout.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
