Niche Jamb Detail

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A-615
Discipline: Architectural

Materials

Stone

Elements

Doors Walls

Text on the drawing

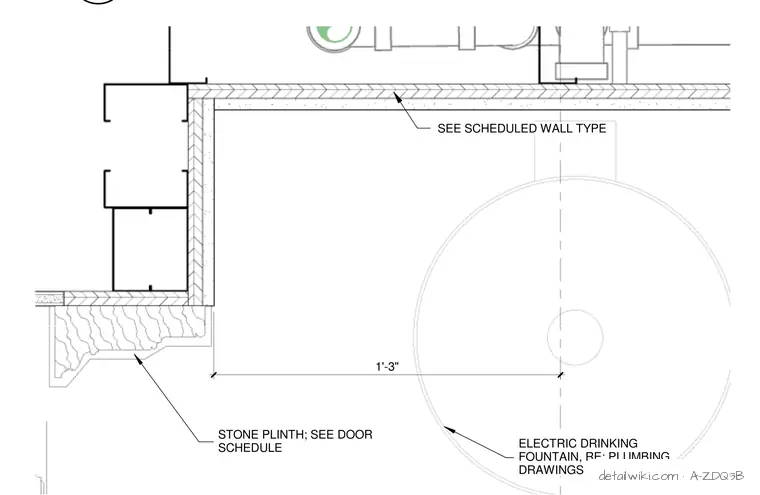

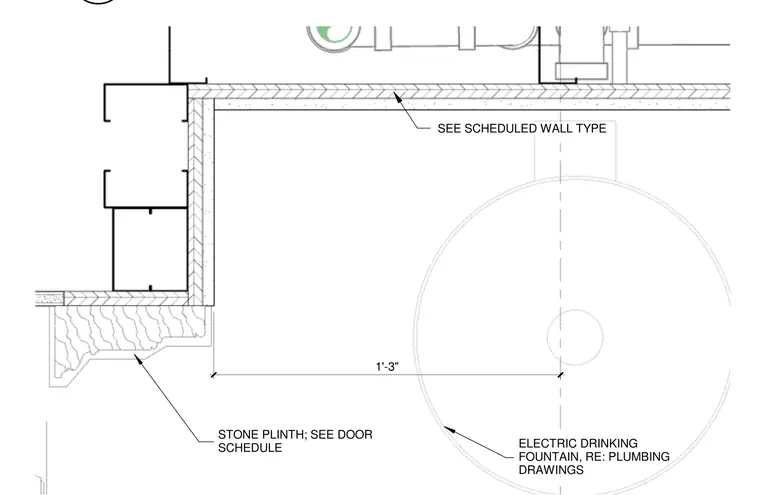

STONE PLINTH; SEE DOOR SCHEDULE SEE SCHEDULED WALL TYPE ELECTRIC DRINKING FOUNTAIN, RE: PLUMBING DRAWINGS 1'-3"
