Roof Edge Guardrail at Standing Seam Eave

Materials

Elements

About this detail

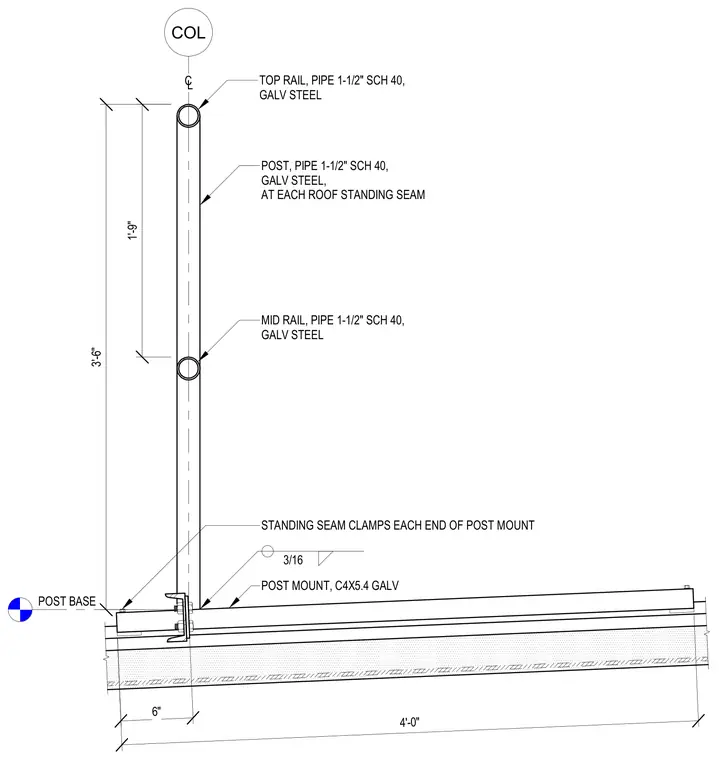

The guardrail assembly consists of a one-and-a-half-inch schedule 40 galvanized steel top rail and mid-rail supported by matching vertical posts spaced at each roof standing seam. Posts attach to a C4x5.4 galvanized steel post mount base anchored with standing seam clamps at each end. A three-sixteenths inch fillet weld secures the post connection to the channel base. The assembly sits atop a standing seam metal roof deck over insulation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
