A U-type bicycle rack constructed from 2.375-inch outer diameter schedule 40 galvanized pipe accommodates two bicycles. The rack is anchored directly to an existing concrete slab using expansion anchors installed per the manufacturer's instructions. A minimum clearance of three feet is maintained between the rack and any adjacent wall.

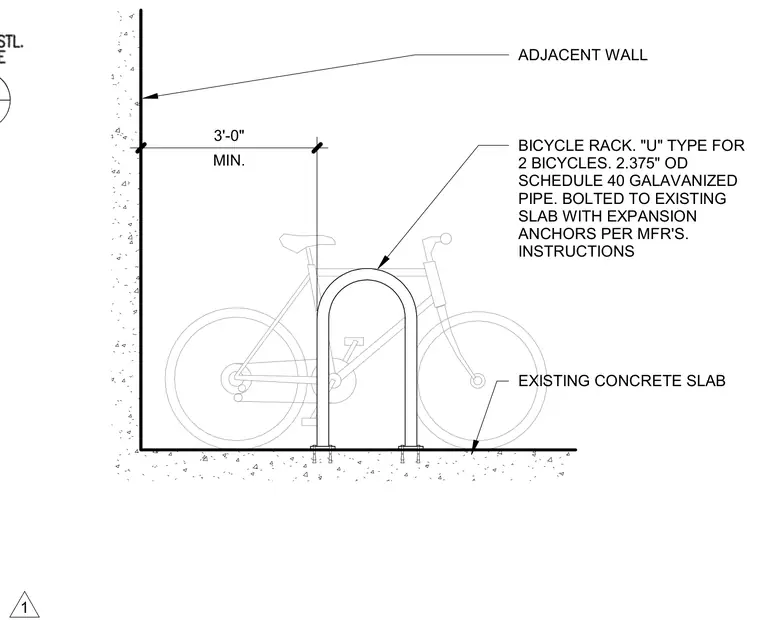

BICYCLE RACK. "U" TYPE FOR 2 BICYCLES. 2.375" OD SCHEDULE 40 GALAVANIZED PIPE. BOLTED TO EXISTING SLAB WITH EXPANSION ANCHORS PER MFR'S. INSTRUCTIONS MIN. 3'-0" ADJACENT WALL EXISTING CONCRETE SLAB 1
