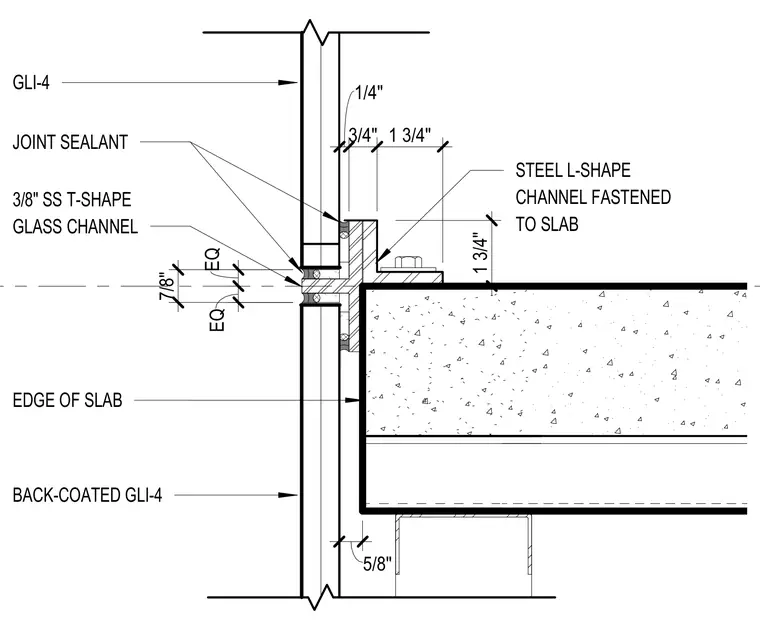

An interior glass wall assembly terminates at the edge of a concrete slab using a three-eighths-inch stainless steel T-shape glass channel and a steel L-shape channel fastened to the slab. Joint sealant is applied at the glass-to-channel interfaces to seal the vertical glass panels. Back-coated GLI-4 glass panels are secured above and below the structural slab edge condition.
1 / 4 " 3 / 4 " 1 3 / 4 " 5 / 8 " G L I - 4 J O I N T S E A L A N T 3 / 8 " S S T - S H A P E G L A S S C H A N N E L E D G E O F S L A B S T E E L L - S H A P E C H A N N E L F A S T E N E D T O S L A B 1 3 / 4 " B A C K - C O A T E D G L I - 4 E Q E Q 7 / 8 "
