Pre-finished aluminum composite metal panels are mounted on cold-formed metal stud framing with panel stiffeners as required. A high-temperature water-resistive barrier is installed over one-half-inch glass-mat gypsum sheathing board behind the framing. The exterior panels feature routed and folded corners, with panel attachment installed per the manufacturer's specifications.

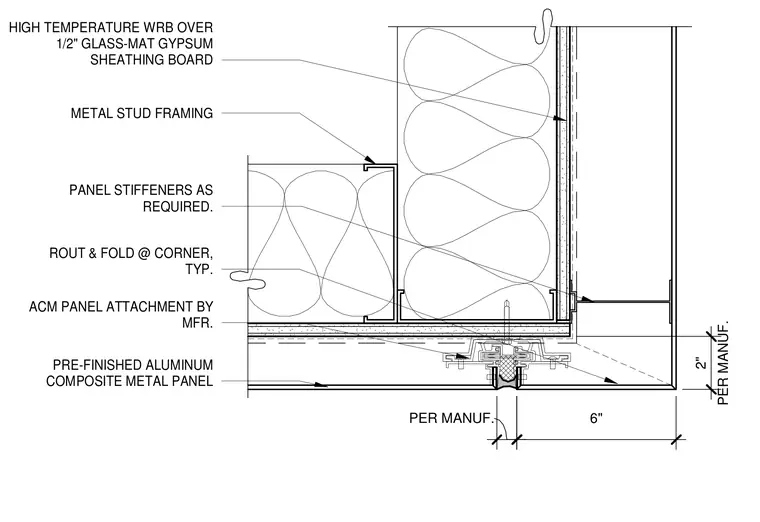

METAL STUD FRAMING HIGH TEMPERATURE WRB OVER 1/2" GLASS-MAT GYPSUM SHEATHING BOARD PRE-FINISHED ALUMINUM COMPOSITE METAL PANEL PANEL STIFFENERS AS REQUIRED. ROUT & FOLD @ CORNER, TYP. ACM PANEL ATTACHMENT BY MFR. PER MANUF. 2" 6" PER MANUF.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
