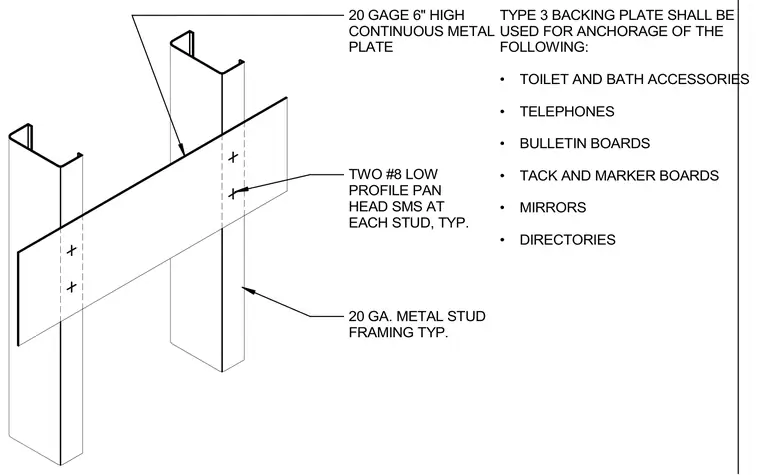

A six-inch high continuous twenty-gauge metal backing plate spans across twenty-gauge metal stud framing. Two number eight low-profile pan head sheet metal screws secure the plate at each stud location. This backing plate provides structural anchorage for toilet and bath accessories, telephones, bulletin boards, tack and marker boards, mirrors, and directories.
TWO #8 LOW PROFILE PAN HEAD SMS AT EACH STUD, TYP. 20 GAGE 6" HIGH CONTINUOUS METAL PLATE 20 GA. METAL STUD FRAMING TYP. TYPE 3 BACKING PLATE SHALL BE USED FOR ANCHORAGE OF THE FOLLOWING: • TOILET AND BATH ACCESSORIES • TELEPHONES • BULLETIN BOARDS • TACK AND MARKER BOARDS • MIRRORS • DIRECTORIES
