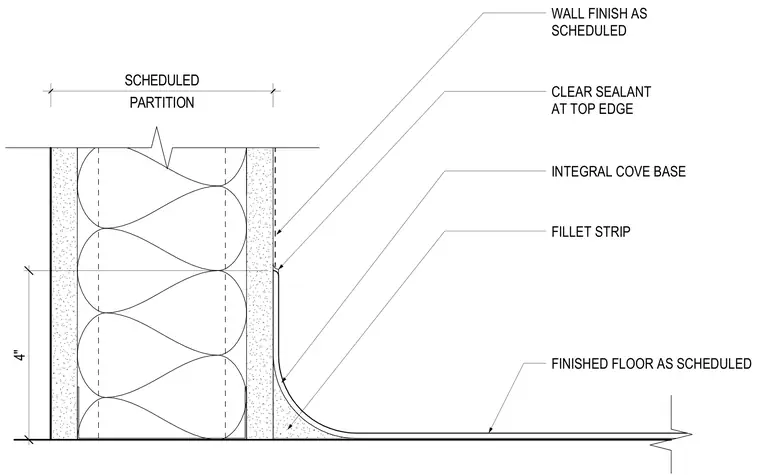

An interior wall base assembly transitions from the finished floor as scheduled up the scheduled partition with an integral cove base. A fillet strip is installed at the internal corner behind the base material to create a smooth radius. Clear sealant is applied at the top edge of the base where it meets the wall finish as scheduled.
PARTITION SCHEDULED INTEGRAL COVE BASE CLEAR SEALANT AT TOP EDGE WALL FINISH AS SCHEDULED FINISHED FLOOR AS SCHEDULED FILLET STRIP 4"
